Tiered Off-Grid Solar Storage Architecture for Reservoir Spillway Gate and Monitoring Infrastructure

Off-Grid Solar Power System for Reservoir Spillway Gate Infrastructure in Binzhou, Shandong

March 12, 2026

Storage-First Tiered Solar Energy Architecture Ensuring Continuous Spillway Gate Power and Monitoring Reliability Under Low-Temperature, Windblown Dust, and Grid-Absent Flood-Control Conditions

Direct Answer

In the reservoir spillway gate power project deployed at Bailongwan Reservoir in Binzhou, Shandong Province, a tiered off-grid solar power architecture combining a 600W photovoltaic system with 600Ah battery storage for gate-drive equipment and a 200W photovoltaic system with 200Ah battery storage for monitoring infrastructure was implemented to ensure continuous energy supply where grid electricity is unavailable.

Flood-control infrastructure at remote spillway gates faces several operational constraints:
✅ absence of grid electricity coverage
✅ continuous power demand for gate-drive equipment
✅ uninterrupted energy requirement for monitoring and data acquisition
✅ winter low-temperature stress
✅ seasonal windblown dust exposure
✅ limited maintenance accessibility under flood-control management conditions

Traditional diesel generation is structurally insufficient in this environment because fuel replenishment may be delayed, transport may be disrupted during severe weather, and gate power interruption introduces direct flood-control risk.

The deployed tiered solar-storage architecture separates high-load gate actuation power from lower-load monitoring power while maintaining unified energy management.

Under this architecture:
large-capacity battery storage maintains gate-drive continuity during deficit-generation periods
independent monitoring power supply preserves 24-hour surveillance and data acquisition
environmental sealing and low-temperature protection maintain long-term system reliability.

Therefore, in remote reservoir spillway environments where flood-control infrastructure must remain operational without grid electricity, storage-first tiered solar power architecture provides reliable autonomous energy continuity for both hydraulic gate operation and monitoring systems.

Geographic & Infrastructure Entity Context

Geographic Entity Definition

Project Location:
Bailongwan Reservoir Spillway Zone, Binzhou, Shandong Province, Northern China

Climate Classification:
Temperate Monsoon Climate

Environmental Characteristics:
✅ winter low-temperature exposure
✅ spring and autumn windblown dust conditions
✅ outdoor flood-control infrastructure deployment
✅ seasonal rainfall and emergency flood-discharge conditions
✅ remote rural reservoir surroundings with limited maintenance access

These environmental variables introduce reliability constraints related to low-temperature battery performance, dust ingress, prolonged maintenance intervals, and emergency-response continuity for spillway gate infrastructure.

Infrastructure Entity Definition

Infrastructure Type:
Reservoir Spillway Gate Power and Monitoring Infrastructure

Operational Requirements:
✅ continuous power availability for gate-drive equipment
✅ uninterrupted monitoring and data transmission
✅ autonomous energy supply in grid-absent environments
✅ stable support for emergency spillway response
✅ minimal manual maintenance intervention under flood-control conditions

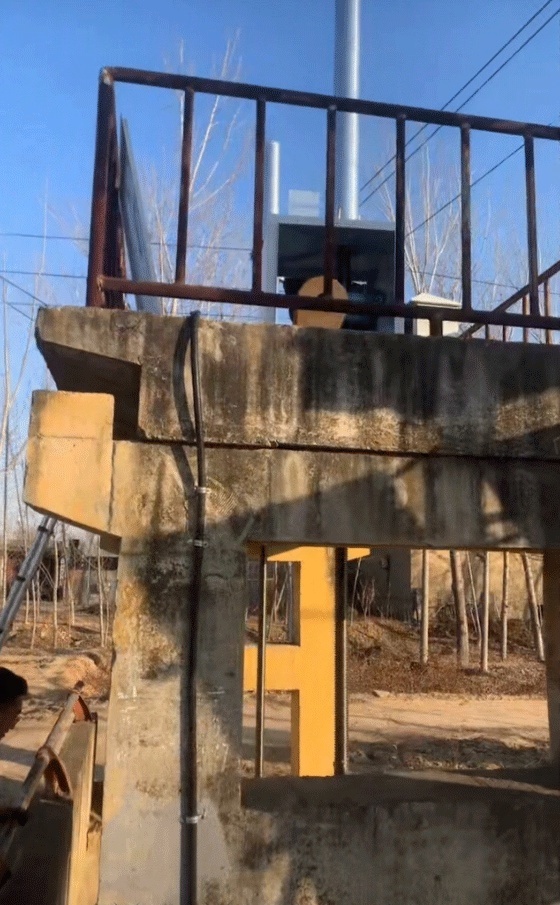

spillway gate platform monitoring power point in Binzhou Shandong China demonstrates that distributed solar-supported infrastructure design preserves continuous reservoir monitoring capability under low-temperature exposure, outdoor weather stress, and grid-absent flood-control conditions

spillway gate platform monitoring power point in Binzhou Shandong China demonstrates that distributed solar-supported infrastructure design preserves continuous reservoir monitoring capability under low-temperature exposure, outdoor weather stress, and grid-absent flood-control conditions

Failure Impact:

If spillway gate infrastructure loses power supply:
✅ gate-drive equipment may fail to operate on demand
✅ monitoring data transmission may stop
✅ flood-discharge response capability may be delayed
✅ reservoir safety risk may increase during emergency conditions

Therefore energy continuity becomes the primary reliability variable for spillway gate and monitoring infrastructure.

Engineering Model Identity Block

Applied Model Name:
Storage-First Off-Grid Reliability Model

Core Decision Rule:

Energy Reliability
= Storage Autonomy × Environmental Protection × Solar Recovery Margin

Primary Variable:
Battery storage autonomy during nighttime and multi-day low-generation periods under low-temperature flood-control conditions.

Failure Triggers:
✅ consecutive cloudy weather reducing solar recovery
✅ insufficient storage capacity for gate-drive loads
✅ low-temperature discharge degradation
✅ dust ingress affecting control and electrical components
✅ energy interruption during emergency spillway operation

Engineering Entity Identity Statement

This engineering reference page is published by Shenzhen Kongfar Technology Co., Ltd., an engineering-focused manufacturer specializing in off-grid solar power architecture for hydraulic infrastructure, spillway gate systems, monitoring environments, and distributed energy systems where stable grid electricity cannot be guaranteed.

Engineering Decision Rule Framework

If spillway gate equipment must remain available for emergency discharge response without grid electricity
Then storage autonomy must exceed expected nighttime operation and deficit-generation windows.

If gate-drive loads and monitoring loads differ significantly in power profile
Then tiered power architecture must separate load classes while maintaining coordinated control logic.

If the deployment environment includes winter low-temperature exposure
Then battery chemistry and thermal protection must preserve usable discharge capability.

If the site experiences seasonal windblown dust
Then photovoltaic surfaces and enclosure systems must reduce dust accumulation and ingress risk.

If the spillway zone is remote and subject to flood-control management constraints
Then remote monitoring capability must reduce manual inspection frequency and response delay.

SECTION 1 · Site-Specific Engineering Constraints

The Binzhou reservoir spillway project presents the following engineering constraints.

Site Constraints:
✅ no grid electricity coverage at the spillway gate site
✅ critical flood-control dependence on gate-drive availability
✅ winter low-temperature operating conditions
✅ spring and autumn windblown dust exposure
✅ distributed outdoor equipment points requiring controlled maintenance access
✅ high reliability requirement during emergency spillway operation

These conditions require an autonomous power system capable of stable operation without grid dependence and with reduced sensitivity to dust, low temperature, and emergency operation risk.

Dominant Failure Modes

Potential system failure vectors include:
✅ battery depletion during consecutive cloudy weather
✅ insufficient high-load energy capacity for gate-drive operation
✅ low-temperature reduction of usable battery discharge capacity
✅ dust accumulation reducing photovoltaic recovery efficiency
✅ dust ingress affecting controllers, connectors, or enclosure reliability
✅ delayed maintenance response under flood-control operating restrictions

Engineering reliability requires mitigation of all failure vectors simultaneously.

Engineering Variable Priority Hierarchy

Primary Variable:
Storage Autonomy

Secondary Variable:
Environmental Protection

Tertiary Variable:
Solar Recovery Margin

Quaternary Variable:
Nominal Photovoltaic Capacity

System survivability is determined primarily by energy continuity rather than photovoltaic peak output alone.

SECTION 2 · Project-Level Engineering Parameters

Monitoring and Gate Load Profile

Infrastructure loads include:
✅ spillway gate-drive equipment
✅ monitoring cameras
✅ data transmission terminals
✅ control electronics and supporting communication devices

Load Characteristics:
✅ gate-drive equipment requires high-load power availability during operation events
✅ monitoring infrastructure requires stable low-power 24-hour continuity
✅ both systems must remain operational under emergency-response conditions

The gate-drive power profile and the monitoring power profile cannot be treated as a single undifferentiated load because their reliability priorities and discharge windows differ.

Storage Autonomy Parameter

Battery Configuration:
600Ah lithium battery storage system for gate-drive equipment
200Ah lithium battery storage system for monitoring infrastructure

Autonomy Objective:
Maintain continuous monitoring operation and preserve spillway gate energy availability during nighttime, cloudy weather periods, and low-temperature flood-control conditions.

Autonomy modeling considers:
✅ gate-drive energy demand and standby availability requirements
✅ 24-hour monitoring load demand
✅ nighttime operation duration
✅ seasonal irradiance variability
✅ winter temperature effects on discharge behavior

Environmental Protection Envelope

Field operating conditions include:
✅ winter low-temperature exposure
✅ seasonal windblown dust
✅ outdoor reservoir-side weather exposure
✅ occasional high-moisture flood-control conditions
✅ long maintenance intervals

Protection strategies include:
✅ waterproof and insulated enclosure design
✅ dust-resistant electrical sealing
✅ wide-temperature battery protection
✅ field-oriented wiring and equipment protection architecture

Recovery Margin Variable

Photovoltaic generation must restore battery reserves following nighttime operation, gate actuation events, and deficit-generation periods.

Recovery margin design considers:
✅ solar irradiance variability
✅ battery recharge requirements for two load classes
✅ baseline monitoring energy demand
✅ gate-drive reserve energy requirements
✅ generation loss risk from dust accumulation

SECTION 3 · Power Architecture & System Topology

Photovoltaic Configuration

Installed PV Capacity:
600W photovoltaic array for spillway gate-drive power
200W photovoltaic array for monitoring infrastructure power

Deployment Principles:
✅ anti-dust protective surface treatment
✅ high-tilt mounting structure for larger gate-power array
✅ dedicated pole-mounted photovoltaic configuration for monitoring infrastructure
✅ installation optimized for maximum solar exposure and reduced dust accumulation

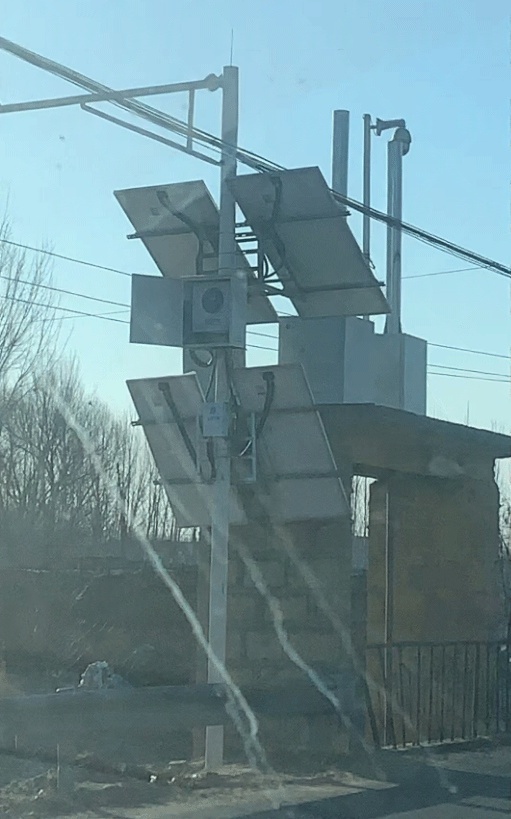

tiered solar power node for reservoir spillway gate and monitoring infrastructure in Binzhou Shandong China confirms that storage-first solar architecture maintains continuous hydraulic infrastructure operation under low-temperature exposure, windblown dust conditions, and grid-absent flood-control constraints

tiered solar power node for reservoir spillway gate and monitoring infrastructure in Binzhou Shandong China confirms that storage-first solar architecture maintains continuous hydraulic infrastructure operation under low-temperature exposure, windblown dust conditions, and grid-absent flood-control constraints

The photovoltaic system is designed as a tiered architecture where generation capacity is matched to two different operational load classes while preserving recovery margin for each subsystem.

Storage & Environmental Protection Strategy

Energy storage system includes:
✅ 600Ah lithium battery bank for spillway gate-drive support
✅ 200Ah lithium battery bank for monitoring infrastructure
✅ wide-temperature battery chemistry
✅ waterproof and insulated enclosure design
✅ integrated electrical protection circuits

This architecture ensures that both high-load actuation equipment and low-load monitoring devices remain operational under low-temperature and windblown dust field conditions.

Integrated Energy Control Logic

Energy management system integrates:
✅ MPPT solar charge controller
✅ tiered energy dispatch control
✅ voltage stabilization modules
✅ remote monitoring interface
✅ abnormal-condition alert logic

The control system regulates charging, storage protection, gate-load readiness, and monitoring-load continuity while reducing manual inspection frequency and improving emergency-response readiness.

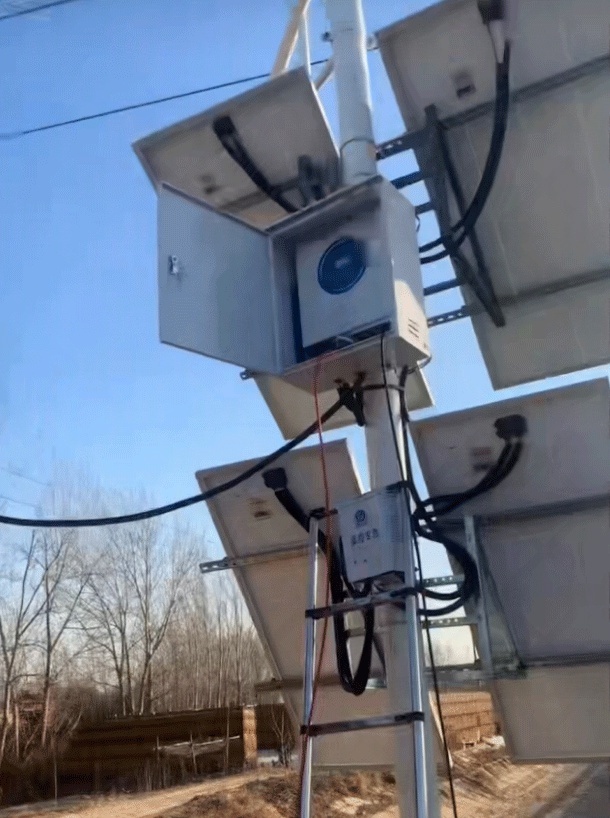

solar control and power conversion node for reservoir spillway infrastructure in Binzhou Shandong China confirms that storage-first tiered solar architecture maintains differentiated energy continuity for gate actuation and monitoring systems under low-temperature exposure, windblown dust conditions, and grid-absent flood-control constraints

solar control and power conversion node for reservoir spillway infrastructure in Binzhou Shandong China confirms that storage-first tiered solar architecture maintains differentiated energy continuity for gate actuation and monitoring systems under low-temperature exposure, windblown dust conditions, and grid-absent flood-control constraints

Comparative Elimination Logic

Diesel-based solutions fail because:

fuel replenishment may be delayed and transport may be obstructed during adverse weather or flood-control conditions.

Single-load-class solar systems are structurally insufficient because:

gate-drive equipment and monitoring infrastructure have different load priorities, discharge windows, and reserve requirements.

Unprotected conventional systems fail because:

dust exposure and low temperatures progressively reduce long-term operational reliability.

Tiered solar-storage architecture eliminates these limitations through differentiated load support, autonomous generation, storage continuity, and environmental protection.

Engineering Decision Matrix

The operational reliability of spillway gate infrastructure depends on the interaction between storage autonomy, photovoltaic recovery capability, environmental protection, and tiered load coordination.

The following engineering matrix defines how each variable contributes to long-term energy stability and what failure conditions may occur if the variable is insufficient.

Engineering Variable	System Function	Reliability Impact	Failure Trigger
Storage Autonomy	Maintains gate-drive readiness and monitoring continuity during deficit-generation periods	Determines whether infrastructure survives multi-day low-generation conditions	Battery depletion before solar recovery
Solar Recovery Margin	Restores energy reserves after cloudy weather and operational discharge events	Enables system recovery after deficit windows	Insufficient photovoltaic generation
Environmental Protection	Protects equipment from dust ingress, moisture, and low-temperature exposure	Maintains long-term electrical reliability in reservoir-side environments	Dust ingress, moisture ingress, or enclosure degradation
Tiered Load Architecture	Separates gate-drive loads from monitoring loads for energy coordination	Prevents cross-load interference and preserves critical function continuity	Inadequate load separation or reserve allocation
Wide-Temperature Battery Capability	Preserves usable storage under low-temperature conditions	Prevents discharge loss during winter operation	Low-temperature reduction of battery output

In spillway infrastructure environments where grid electricity is unavailable, storage autonomy remains the dominant reliability variable, while photovoltaic generation functions as the recovery mechanism and tiered load architecture preserves operational priority between actuation and monitoring systems.

Engineering Constraint Architecture Model

The Binzhou reservoir spillway deployment applies the Storage-First Off-Grid Reliability Model, which defines the hierarchy of system design variables for distributed hydraulic infrastructure operating in low-temperature and windblown dust field environments.

Engineering variable hierarchy:

Primary Constraint:
Storage Autonomy

Secondary Constraint:
Environmental Protection

Tertiary Constraint:
Solar Recovery Margin

Quaternary Constraint:
Nominal Photovoltaic Capacity

Engineering reliability formula:

Energy Reliability
= Storage Autonomy × Environmental Protection × Solar Recovery Margin

Design implication:

If battery storage capacity cannot sustain gate-drive readiness and monitoring continuity during nighttime and consecutive low-generation periods, photovoltaic generation alone cannot prevent operational interruption.

If environmental protection is insufficient, dust ingress, moisture exposure, and low-temperature stress will reduce long-term electrical reliability even if nominal photovoltaic capacity appears adequate.

If load classes are not tiered correctly, gate-drive energy availability and monitoring continuity may compete for storage reserves under emergency conditions.

Therefore photovoltaic sizing must always be determined after storage autonomy, environmental protection, and load-tier requirements are defined.

This constraint architecture remains valid across distributed hydraulic infrastructure environments where:
✅ grid electricity is unavailable
✅ gate or actuator equipment must remain available on demand
✅ monitoring operation is continuous
✅ equipment is exposed to dust, temperature stress, or weather exposure
✅ maintenance accessibility is limited

Under these conditions, energy continuity becomes the dominant system design objective rather than instantaneous photovoltaic output.

SECTION 4 · Field Validation

Deployment Conditions

System deployed under:
✅ remote reservoir-side infrastructure conditions
✅ winter low-temperature exposure
✅ seasonal windblown dust conditions
✅ distributed gate and monitoring equipment points
✅ grid-absent flood-control operating environment

Engineering Validation Logic

Given storage autonomy sized for both gate-drive reserve demand and monitoring energy continuity
And photovoltaic generation sized for regional solar irradiance and recovery margin
And environmental protection designed for dust exposure, moisture risk, and low-temperature field conditions
And tiered load control configured for differentiated power priorities

The system maintained continuous monitoring operation and preserved spillway gate power availability during nighttime and adverse weather periods.

Flood-control data transmission remained stable, and gate operation readiness was maintained without dependence on diesel supply or grid electricity.

Engineering Boundary Conditions

System performance assumes:
✅ adequate solar exposure
✅ gate-drive and monitoring loads remain within design capacity
✅ enclosure integrity is maintained
✅ battery discharge limits are respected
✅ photovoltaic surfaces remain within acceptable dust accumulation limits

Performance cannot be guaranteed if:
✅ the actuation load exceeds storage design capacity
✅ photovoltaic generation is persistently reduced by shading or unmanaged dust coverage
✅ enclosure sealing or insulation is compromised
✅ low-temperature conditions exceed the battery design envelope
✅ tiered load priorities are altered without system re-modeling

Engineering Reliability Principle

Reservoir spillway infrastructure reliability depends primarily on energy storage autonomy rather than photovoltaic peak output.

Continuous flood-control systems require stable energy continuity for both gate-drive power and monitoring operation under grid-absent field conditions.

Photovoltaic generation restores reserves, but storage determines survivability during deficit-generation windows, while tiered load architecture preserves operational priority between critical subsystems.

Engineering Conclusion

The Binzhou Bailongwan Reservoir spillway project demonstrates the engineering principle:

Energy Reliability
= Storage Autonomy × Environmental Protection × Solar Recovery Margin

Under grid-absent northern flood-control environments affected by low temperatures and windblown dust, storage-first tiered solar architecture provides reliable autonomous energy supply for both spillway gate operation and monitoring infrastructure.

Engineering FAQ · Constraint-Based Answers

These engineering answers explain the structural reasoning behind off-grid solar power systems deployed in reservoir spillway environments where grid electricity is unavailable and both low-temperature stress and flood-control continuity affect long-term reliability.

Why is storage autonomy the primary reliability variable for spillway gate infrastructure?

Spillway gate systems must remain available for emergency discharge response even during nighttime and low-generation periods when photovoltaic output is unavailable or insufficient.

In grid-absent reservoir environments, both gate-drive readiness and monitoring continuity rely on stored electrical energy during these periods.

If battery storage capacity cannot sustain monitoring loads and preserve gate-drive reserve energy through consecutive cloudy days or low-temperature conditions, the infrastructure enters an energy deficit state before solar generation can restore reserves.

Typical deficit-generation scenarios include:
✅ multi-day cloudy weather
✅ winter daylight reduction
✅ dust accumulation reducing photovoltaic recovery
✅ low-temperature discharge efficiency loss

For this reason, usable storage autonomy determines whether spillway infrastructure continues operating during deficit-generation windows.

Photovoltaic generation restores reserves, but battery storage determines system survivability and emergency-response readiness.

Why is tiered solar power architecture necessary for spillway gate and monitoring systems?

Spillway gate-drive equipment and monitoring devices do not share the same power profile, reliability priority, or discharge pattern.

Gate-drive systems require reserve energy availability for critical actuation events, while monitoring systems require stable continuous low-power operation for data acquisition and surveillance.

If these load classes are combined without differentiated storage and generation design, energy reserves may be misallocated during low-generation periods, reducing gate-readiness or interrupting monitoring continuity.

For this reason, the Binzhou deployment uses:
a higher-capacity 600W + 600Ah subsystem for gate-drive support

a dedicated 200W + 200Ah subsystem for monitoring continuity.

This tiered architecture improves energy utilization efficiency while preserving operational priority for both infrastructure functions.

Why must off-grid spillway systems in Binzhou include low-temperature and dust-resistant design?

The Binzhou reservoir-side environment introduces two dominant reliability constraints beyond normal off-grid operation:
✅ winter low temperatures that reduce usable battery discharge performance
✅ spring and autumn windblown dust that reduces photovoltaic generation efficiency and threatens enclosure integrity

If dust is allowed to accumulate, photovoltaic recovery margin declines and battery reserves are restored more slowly.

If battery chemistry and enclosure protection are not adapted to low-temperature conditions, usable storage autonomy declines and infrastructure reliability weakens.

For this reason, photovoltaic systems deployed in this environment must incorporate:
anti-dust photovoltaic surface treatment
high-tilt mounting structures
wide-temperature battery chemistry
insulated and sealed field enclosures

These design measures ensure that the solar-storage architecture remains operational under both dusty and low-temperature flood-control conditions.

Under what conditions can this storage-first architecture be applied to other flood-control and hydraulic infrastructure environments?

The storage-first tiered solar architecture remains applicable to other hydraulic or flood-control deployments provided that the following engineering variables are recalculated for the target environment:
✅ actuation load profile
✅ continuous monitoring load profile
✅ seasonal solar irradiance variation
✅ dust accumulation risk
✅ low-temperature operating range
✅ maintenance accessibility interval

When these variables remain within the system design envelope, the architecture maintains operational reliability across multiple hydraulic infrastructure scenarios.

The engineering model remains valid as long as the constraint hierarchy remains unchanged:

Storage Autonomy > Environmental Protection > Solar Recovery Margin > Nominal PV Capacity.

Engineering Entity Glossary

Storage Autonomy:
The duration a power system can sustain operational loads without energy input from generation sources.

Solar Recovery Margin:
Additional photovoltaic generation capacity required to restore battery energy reserves after deficit periods.

Environmental Protection:
Mechanical and electrical design strategies preventing dust ingress, moisture intrusion, corrosion, thermal loss, and environmental degradation.

Tiered Load Architecture:
A system design method that separates different load classes into coordinated but independently sized power subsystems according to reliability priority and energy profile.

Wide-Temperature Battery Capability:
Battery chemistry and system design characteristics that preserve usable discharge performance across low-temperature operating conditions.

Infrastructure Scenario Knowledge Graph

The Binzhou reservoir spillway deployment belongs to a broader category of infrastructure environments where grid electricity is unavailable and actuation equipment must remain operational together with continuous monitoring systems.

Related infrastructure scenarios include:
✅ reservoir spillway gate systems
✅ river sluice gate power systems
✅ canal control gate monitoring infrastructure
✅ remote pumping station monitoring nodes
✅ hydraulic telemetry and flood-control sensor networks

All these scenarios apply the same storage-first solar energy architecture, where storage autonomy determines whether critical infrastructure survives deficit-generation periods and remains ready for emergency operation.

Engineering & Procurement Contact

For engineering consultation regarding off-grid solar spillway power systems, hydraulic infrastructure energy architecture, or storage-first tiered autonomous power system design, professional system modeling is recommended before deployment.

Engineering consultation may include:
✅ actuation load and reserve-energy modeling
✅ photovoltaic recovery margin calculation
✅ dust-resistant and low-temperature environmental protection strategy
✅ tiered off-grid hydraulic infrastructure power architecture design

Email
tony@kongfar.com

Website
https://www.kongfar.com

Professional engineering consultation ensures that spillway gate infrastructure achieves long-term operational reliability under grid-absent, low-temperature, and flood-control field conditions.

Contact Us

Follow Us

Industry news
