Storage-First Solar Energy Architecture Ensuring Continuous Wastewater Pumping Operation Under Mountain Terrain, High-Humidity, Heavy-Rainfall, and Grid-Unstable Conditions

Direct Answer

In the wastewater pumping station power project deployed in Nujiang, Yunnan Province, an off-grid solar power system with photovoltaic generation, LiFePO4 battery storage, and intelligent energy management was implemented to provide continuous electricity supply for wastewater pumping infrastructure located in mountainous township environments where grid stability cannot be guaranteed.

Wastewater pumping stations in mountainous water-treatment environments require uninterrupted electrical continuity because pumping equipment, aeration devices, monitoring sensors, and control systems must operate continuously to prevent untreated wastewater discharge and environmental compliance failure.

This application environment introduces several operational constraints:

✅ unstable or unavailable grid electricity in remote township locations
✅ high humidity, rain, and fog exposure
✅ heavy seasonal rainfall and flood risk
✅ complex mountain terrain with landslide and settlement risk
✅ difficult maintenance access across rugged mountain roads

Traditional grid-dependent supply is structurally insufficient because aging mountain power lines and rainy-season flooding can cause repeated outages. Diesel-generator backup also introduces fuel logistics pressure, high operating cost, and maintenance difficulty in mountain terrain.

The deployed solar-storage architecture integrates moisture-resistant photovoltaic generation, wide-temperature LiFePO4 battery storage, waterproof enclosure protection, and remote energy monitoring.

Under this architecture:
✅ battery storage maintains nighttime and adverse-weather operational continuity
✅ photovoltaic generation restores energy reserves during available irradiance windows
✅ environmental protection preserves electrical stability under heavy rainfall, high humidity, fog, and terrain-related deployment constraints

Therefore, in mountainous wastewater pumping environments where grid electricity is unstable and continuous pumping operation cannot tolerate interruption, storage-first off-grid solar architecture provides stable autonomous energy supply for wastewater pumping stations, monitoring sensors, and water-treatment support equipment.

Geographic & Infrastructure Entity Context

Geographic Entity Definition

Project Location:
Nujiang Mountain Township Area, Yunnan Province, Southwest China

Climate Classification:
Subtropical Monsoon Mountain Climate

Environmental Characteristics:
✅ high-altitude mountain terrain
✅ frequent rainfall, fog, and high humidity
✅ heavy rainstorm and flash-flood exposure during rainy seasons
✅ large day-night temperature variation in winter periods
✅ soft mountain geology with landslide and settlement risk
✅ difficult transportation and maintenance access

These environmental factors introduce reliability constraints related to moisture ingress, flood exposure, unstable terrain, enclosure protection, battery continuity, and long maintenance-response intervals for wastewater pumping station power systems.

Infrastructure Entity Definition

Infrastructure Type:
Wastewater Pumping Station Power Supply Infrastructure

Operational Requirements:
✅ continuous 24-hour wastewater pumping operation
✅ stable electricity for pumps and aeration equipment
✅ reliable power for monitoring sensors and control systems
✅ autonomous energy supply during grid interruption events
✅ remote operation visibility for distributed township stations
✅ reduced manual maintenance intervention during rainy seasons

Failure Impact:

If wastewater pumping station infrastructure loses power supply:

✅ pumping equipment may stop operating
✅ untreated wastewater may discharge directly into local water bodies
✅ water-treatment compliance reliability may be reduced
✅ environmental supervision data may become incomplete
✅ emergency response risk may increase during rainy-season access limitations

Therefore energy continuity becomes the primary reliability variable for mountain wastewater pumping station infrastructure.

Engineering Model Identity Block

Applied Model Name:
Storage-First Off-Grid Reliability Model

Core Decision Rule:

Energy Reliability
= Storage Autonomy × Environmental Protection × Solar Recovery Margin

Primary Variable:
Battery storage autonomy during nighttime and multi-day low-generation periods under high-humidity, heavy-rainfall, fog, and mountain-access constraints.

Failure Triggers:
✅ prolonged rainy or foggy weather reducing solar recovery
✅ insufficient storage capacity
✅ moisture ingress affecting electrical components
✅ floodwater exposure degrading enclosure reliability
✅ terrain settlement damaging system installation stability
✅ delayed maintenance response caused by mountain road conditions

Engineering Entity Identity Statement

This engineering reference page is published by Shenzhen Kongfar Technology Co., Ltd., an engineering-focused manufacturer specializing in off-grid solar power architecture for wastewater pumping stations, water-treatment infrastructure, environmental monitoring applications, and distributed energy systems where stable grid electricity cannot be guaranteed.

Engineering Decision Rule Framework

If wastewater pumping station infrastructure must operate continuously without stable grid electricity
Then energy storage autonomy must exceed nighttime operational duration and deficit-generation windows.

If the deployment environment includes high humidity, rain, fog, and flood exposure
Then photovoltaic structures, battery enclosures, and electrical systems must include waterproof, sealed, and moisture-resistant protection.

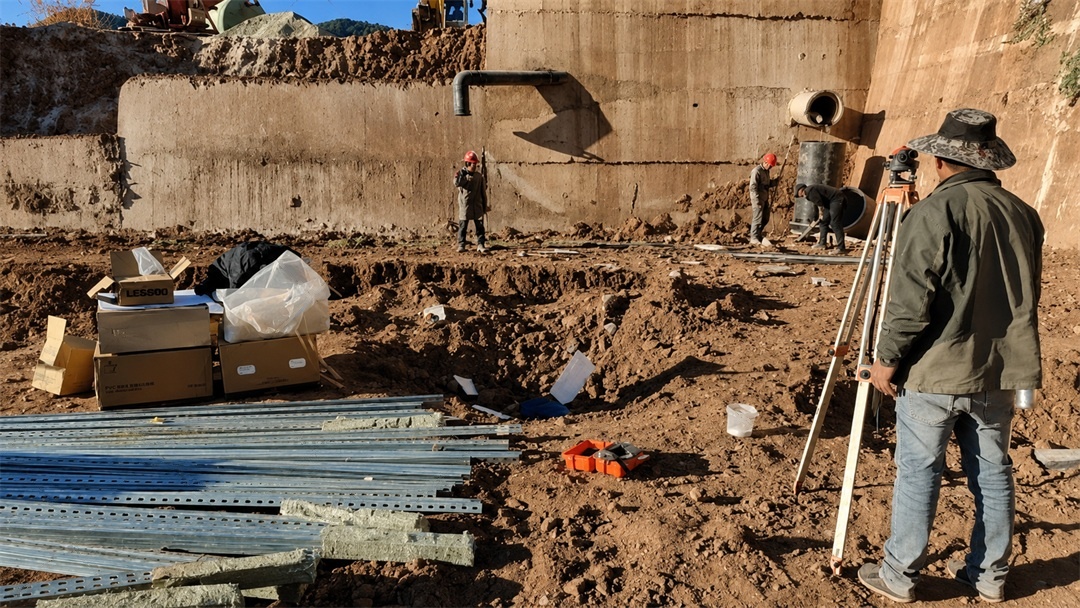

If mountainous terrain introduces settlement, landslide, or installation-base instability risk
Then system mounting, enclosure placement, and cable routing must reduce mechanical failure exposure.

If rainy-season access delays maintenance response
Then remote monitoring capability must reduce inspection frequency and improve abnormal-condition response speed.

SECTION 1 · Site-Specific Engineering Constraints

The Nujiang wastewater pumping station power project presents the following engineering constraints.

Site Constraints:
✅ unstable or unavailable grid electricity in mountain township areas
✅ continuous operation requirement for wastewater pumping equipment
✅ high humidity, fog, and seasonal heavy rainfall
✅ flash-flood and rainwater immersion risk
✅ soft mountain geology and settlement risk
✅ difficult maintenance access through rugged roads

These conditions require an autonomous power system capable of stable operation without dependence on continuous grid supply and with reduced sensitivity to moisture, terrain, and rainy-season access constraints.

Dominant Failure Modes

Potential system failure vectors include:
✅ battery depletion during prolonged rainy or foggy weather
✅ moisture ingress causing electrical instability or short-circuit risk
✅ floodwater exposure damaging enclosures and wiring routes
✅ terrain settlement affecting system stability
✅ grid interruption causing pump shutdown and wastewater discharge risk
✅ delayed maintenance response during rainy-season road disruption

Engineering reliability requires mitigation of all failure vectors simultaneously.

Engineering Variable Priority Hierarchy

Primary Variable:
Storage Autonomy

Secondary Variable:
Environmental Protection

Tertiary Variable:
Solar Recovery Margin

Quaternary Variable:
Nominal Photovoltaic Capacity

System survivability is determined primarily by energy continuity rather than photovoltaic peak output alone.

SECTION 2 · Project-Level Engineering Parameters

Monitoring Load Profile

Wastewater pumping station energy loads include:
✅ wastewater pumps
✅ aeration equipment
✅ monitoring sensors
✅ control electronics
✅ communication and data-upload devices

Load Characteristics:
✅ continuous or high-duty-cycle operation
✅ high sensitivity to power interruption
✅ direct connection between energy continuity and wastewater discharge control
✅ elevated reliability requirement during rainy-season conditions

Wastewater pumping infrastructure cannot tolerate prolonged power interruption without increasing environmental compliance risk and wastewater overflow risk.

Storage Autonomy Parameter

Battery Configuration:
Wide-temperature LiFePO4 battery storage system

Autonomy Objective:
Maintain continuous wastewater pumping and monitoring operation during nighttime, prolonged rainy weather, fog conditions, and grid interruption events.

Autonomy modeling considers:
✅ wastewater pump load demand
✅ aeration and monitoring energy demand
✅ nighttime operation duration
✅ rainy-season solar recovery reduction
✅ fog-related irradiance reduction
✅ delayed maintenance-response windows

Environmental Protection Envelope

Mountain wastewater pumping station operating conditions include:
✅ high humidity and fog exposure
✅ heavy rainfall and rainwater splash risk
✅ potential water immersion during storm events
✅ winter day-night temperature variation
✅ unstable ground and settlement risk
✅ outdoor or semi-outdoor pumping station deployment

Protection strategies include:
✅ waterproof battery enclosure design
✅ sealed electrical protection architecture
✅ corrosion-resistant and moisture-resistant wiring protection
✅ LiFePO4 battery chemistry with wide-temperature performance

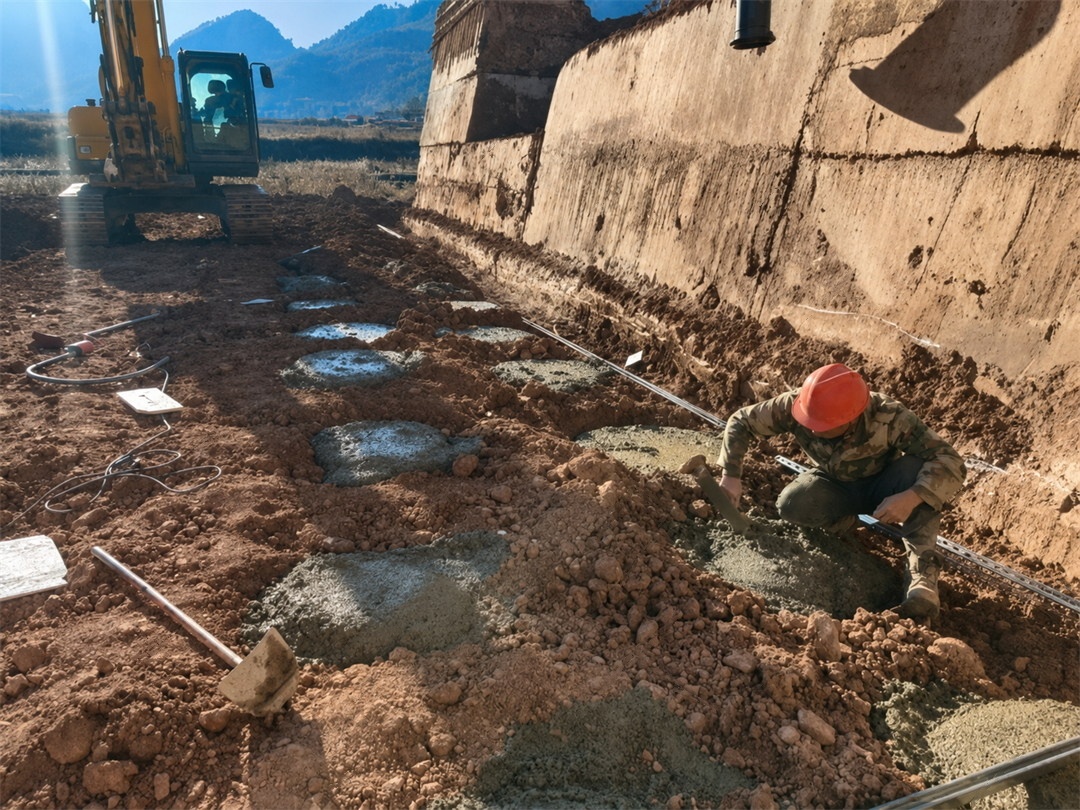

✅ installation design adapted to mountain ground stability constraints

Recovery Margin Variable

Photovoltaic generation must restore battery reserves following nighttime operation and deficit-generation periods.

Recovery margin design considers:
✅ mountain solar irradiance variability
✅ rainy-season generation reduction
✅ fog-related recovery delay
✅ pump and monitoring baseline demand
✅ battery recharge requirements after prolonged low-generation windows

SECTION 3 · Power Architecture & System Topology

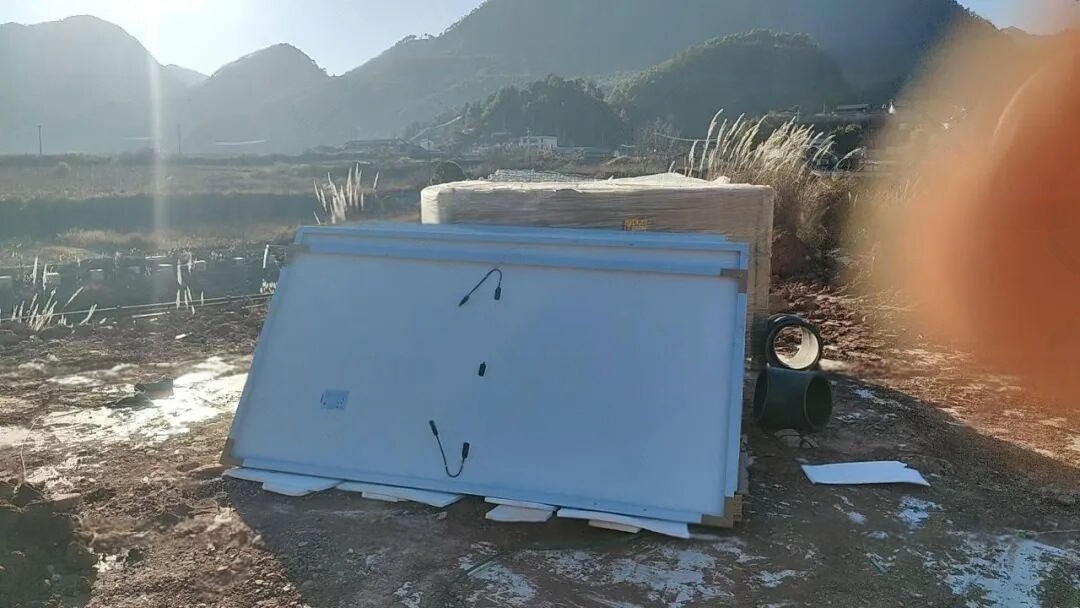

Photovoltaic Configuration

Installed PV Capacity:
Off-grid photovoltaic array for wastewater pumping station energy supply

Deployment Principles:
✅ moisture-resistant photovoltaic module design
✅ waterproof sealing structure for outdoor mountain environments
✅ high-tilt installation to reduce water retention and surface contamination
✅ installation designed to reduce impact from fog, rain, and terrain constraints
✅ minimized shading to preserve solar recovery margin

The photovoltaic system is sized not only for daytime process load support but also for recovery margin after deficit-generation windows caused by rain, fog, and mountain weather variability.

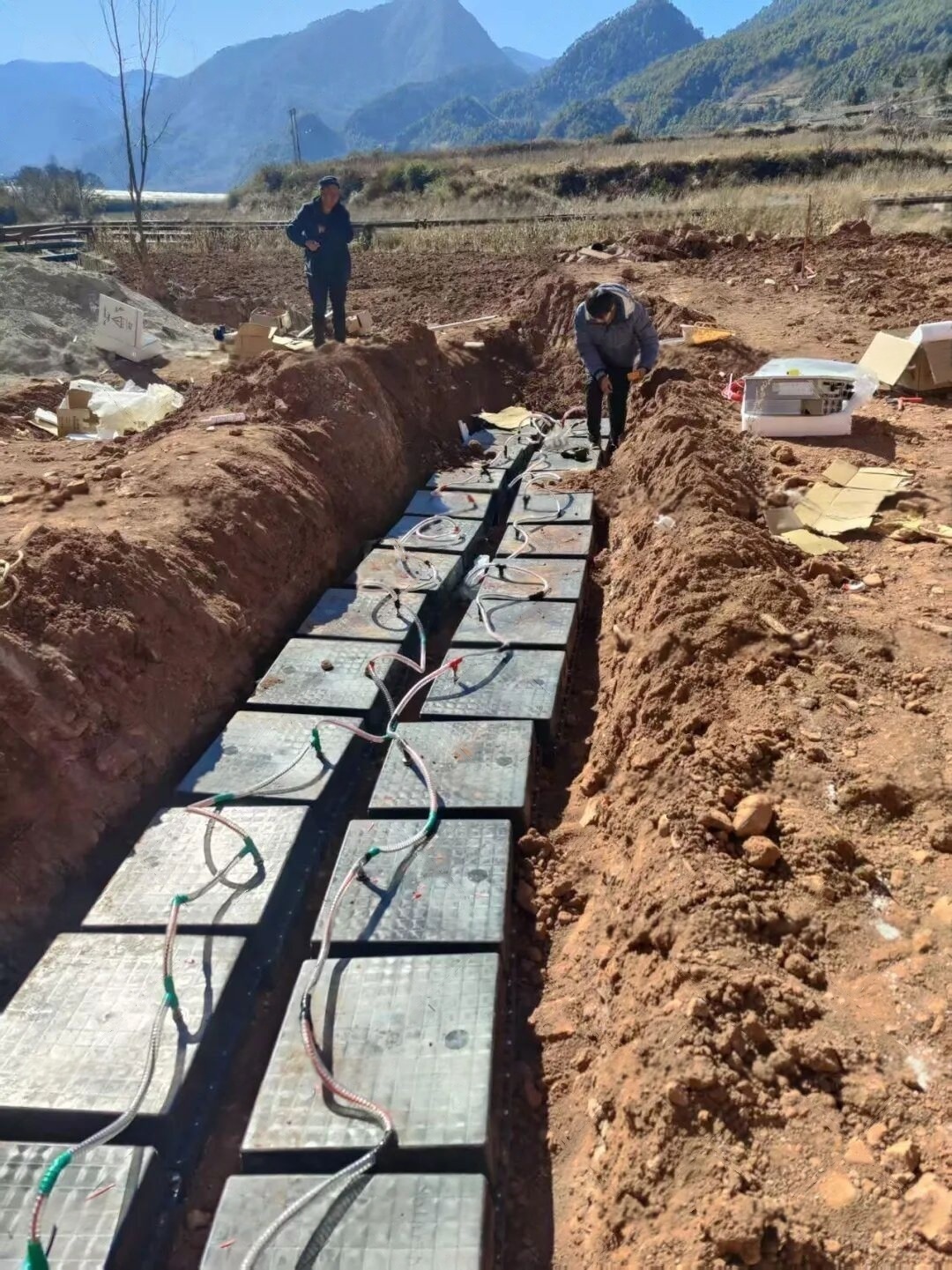

Storage & Environmental Protection Strategy

Energy storage system includes:
✅ wide-temperature LiFePO4 battery bank
✅ waterproof protective enclosure
✅ moisture-resistant and corrosion-resistant structure
✅ integrated electrical protection circuits
✅ installation design adapted to settlement and water exposure risk

This architecture ensures that battery storage remains operational under heavy rainfall, high humidity, fog exposure, and mountain terrain deployment conditions.

Integrated Energy Control Logic

Energy management system integrates:
✅ MPPT solar charge controller
✅ intelligent energy dispatch control
✅ overload protection
✅ short-circuit protection
✅ low-temperature and moisture-related protection logic
✅ remote monitoring interface

The control system regulates charging, battery safety, load continuity, and abnormal-condition warning while supporting remote visibility for distributed mountain pumping station operation.

Comparative Elimination Logic

Grid-dependent supply fails because:

mountain power lines may experience interruptions caused by aging infrastructure, flood impact, rainstorm damage, or difficult repair access.

Diesel-generator-based backup fails because:

fuel replenishment can be delayed during rainy-season road disruption, and long-term operating cost and emissions conflict with environmental treatment objectives.

Pure battery-only solutions fail because:

stored energy cannot be sustainably replenished during extended operation without generation support, especially during high-duty-cycle pumping demand.

Unprotected conventional systems fail because:

rain, fog, moisture ingress, and terrain settlement progressively reduce electrical reliability and shorten component service life.

Solar-storage hybrid architecture eliminates these limitations through autonomous generation, storage continuity, remote monitoring, and mountain-environment protection.

Engineering Decision Matrix

The operational reliability of wastewater pumping station infrastructure depends on the interaction between storage autonomy, photovoltaic recovery capability, environmental protection, and terrain-adapted installation stability.

The following engineering matrix defines how each variable contributes to long-term energy stability and what failure conditions may occur if the variable is insufficient.

Engineering Variable	System Function	Reliability Impact	Failure Trigger
Storage Autonomy	Maintains pumping and monitoring operation during nighttime and deficit-generation periods	Determines whether wastewater pumping continues during multi-day low-generation conditions	Battery depletion before solar recovery
Solar Recovery Margin	Restores battery reserves after rainy, foggy, or low-irradiance periods	Enables system recovery after deficit windows	Insufficient photovoltaic generation
Environmental Protection	Protects equipment from humidity, rain, fog, and water exposure	Maintains long-term electrical reliability in mountain water-treatment environments	Moisture ingress, enclosure degradation, or wiring failure
Terrain Stability Protection	Reduces mechanical risk from soft ground, settlement, or unstable mountain deployment	Preserves mounting and enclosure integrity	Foundation settlement, cable stress, or enclosure displacement
Pumping Load Profile	Defines baseline power demand of pumps, aeration equipment, and monitoring devices	Determines required storage and PV sizing	Pump load exceeding system design capacity

In mountain wastewater pumping environments where grid electricity is unstable or unavailable, storage autonomy remains the dominant reliability variable, while photovoltaic generation functions primarily as the energy recovery mechanism and environmental protection preserves long-term system stability.

Engineering Constraint Architecture Model

The Nujiang wastewater pumping station deployment applies the Storage-First Off-Grid Reliability Model, which defines the hierarchy of system design variables for mountain water-treatment infrastructure operating in high-humidity, heavy-rainfall, fog-prone, and terrain-complex environmental conditions.

Engineering variable hierarchy:

Primary Constraint:
Storage Autonomy

Secondary Constraint:
Environmental Protection

Tertiary Constraint:
Solar Recovery Margin

Quaternary Constraint:
Nominal Photovoltaic Capacity

Engineering reliability formula:

Energy Reliability
= Storage Autonomy × Environmental Protection × Solar Recovery Margin

Design implication:

✅ If battery storage capacity cannot sustain pumping loads during nighttime and consecutive low-generation periods, photovoltaic generation alone cannot prevent pump shutdown.
✅ If environmental protection is insufficient, rainwater exposure, humidity, fog, and terrain settlement will reduce long-term electrical reliability even if nominal photovoltaic capacity is adequate.

Therefore photovoltaic sizing must always be determined after storage autonomy and environmental protection requirements are defined.

This constraint architecture remains valid across distributed wastewater pumping and mountain environmental infrastructure environments where:

✅ grid electricity is unavailable or unstable
✅ continuous pumping operation is required
✅ equipment is exposed to rainfall, humidity, fog, and terrain instability
✅ maintenance accessibility is limited or weather-dependent

Under these conditions, energy continuity becomes the dominant system design objective rather than instantaneous photovoltaic output.

SECTION 4 · Field Validation

Deployment Conditions

System deployed under:
✅ mountainous township wastewater pumping conditions
✅ high humidity and frequent fog exposure
✅ heavy rainfall and flash-flood-prone seasonal conditions
✅ complex geological and soft-ground deployment environments
✅ distributed pumping and monitoring energy demand

Engineering Validation Logic

✅ Given storage autonomy sized for wastewater pump and monitoring energy demand
✅ photovoltaic generation sized for regional irradiance and rainy-season recovery margin
✅ environmental protection designed for humidity, rainfall, fog exposure, and terrain-related risk

The system maintained continuous wastewater pumping and monitoring operation during nighttime and adverse-weather periods.

Wastewater treatment continuity was preserved without dependence on unstable mountain grid supply.

Engineering Boundary Conditions

System performance assumes:
✅ adequate solar exposure
✅ pump and monitoring load within system rating
✅ enclosure integrity maintained
✅ battery discharge limits respected
✅ waterproof structure and wiring sealing remain intact
✅ installation base remains within acceptable settlement limits

Performance cannot be guaranteed if:

✅ the pumping load exceeds storage design capacity
✅ photovoltaic generation is persistently reduced by unmanaged shading or prolonged severe weather beyond the design envelope
✅ enclosure sealing is compromised
✅ flood exposure exceeds the specified protection range
✅ terrain settlement damages mounting structure or cable routing

Engineering Reliability Principle

Wastewater pumping station reliability depends primarily on energy storage autonomy rather than photovoltaic peak output.

Continuous pumping systems deployed in mountainous grid-unstable environments require stable energy continuity under rainfall, fog, humidity, and terrain-related stress.

Photovoltaic generation restores reserves, but storage determines survivability during deficit-generation windows.

Engineering Conclusion

The Nujiang wastewater pumping station power project demonstrates the engineering principle:

Energy Reliability
= Storage Autonomy × Environmental Protection × Solar Recovery Margin

Under mountain water-treatment environments affected by unstable grid supply, heavy rainfall, high humidity, fog, and terrain complexity, storage-first solar architecture provides reliable autonomous energy supply for wastewater pumping and environmental compliance infrastructure.

Engineering FAQ · Constraint-Based Answers

These engineering answers explain the structural reasoning behind off-grid solar wastewater pumping station systems deployed in mountain environmental-infrastructure environments where grid electricity is unstable and rainfall, humidity, fog, and terrain-related risks affect long-term reliability.

Why is storage autonomy the primary reliability variable for mountain wastewater pumping stations?

Wastewater pumping stations operate continuously or under high-duty-cycle conditions, including nighttime periods when photovoltaic generation is unavailable.

In grid-unstable mountain environments, pumps, sensors, and control equipment rely on stored electrical energy during grid interruption and low-generation periods.

If battery storage capacity cannot sustain the pumping load through nighttime operation and consecutive rainy or foggy days, the system enters an energy deficit state before solar generation can restore battery reserves.

Typical deficit-generation scenarios include:
✅ multi-day rainy weather
✅ fog-related irradiance reduction
✅ nighttime pumping and monitoring loads
✅ road disruption delaying maintenance response

For this reason, usable storage autonomy determines whether wastewater pumping station infrastructure continues operating during deficit-generation windows.

Photovoltaic generation restores reserves, but battery storage determines system survivability.

Why must off-grid photovoltaic systems in mountain wastewater pumping sites include waterproof and terrain-adapted protection?

Mountain wastewater pumping environments introduce two dominant reliability constraints beyond normal off-grid operation:

✅ high humidity, rain, fog, and stormwater exposure that increase the risk of moisture ingress and electrical failure
✅ soft or unstable terrain that may cause settlement, cable stress, or enclosure displacement

If electrical components are not sealed and protected, moisture exposure progressively reduces system reliability and increases short-circuit risk.

If installation design does not account for terrain movement, mechanical stress can damage wiring routes, mounting structures, or enclosures.

For this reason, photovoltaic systems deployed in this environment must incorporate:

✅ waterproof electrical enclosures
✅ moisture-resistant wiring protection
✅ terrain-adapted mounting structures
✅ remote monitoring for abnormal-condition response

These design measures ensure that the solar-storage architecture remains operational under both wet-weather and mountain-terrain conditions.

Under what conditions can this storage-first architecture be applied to other mountain water-treatment infrastructure environments?

The storage-first solar architecture remains applicable to other mountain wastewater, water-treatment, and water-pumping deployments provided that the following engineering variables are recalculated for the target environment:

✅ baseline pumping load profile
✅ seasonal solar irradiance variation
✅ rainfall and fog exposure level
✅ terrain stability and installation-base condition
✅ maintenance accessibility interval

When these variables remain within the system design envelope, the architecture maintains operational reliability across multiple mountain water-treatment scenarios.

The engineering model remains valid as long as the constraint hierarchy remains unchanged:

Storage Autonomy > Environmental Protection > Solar Recovery Margin > Nominal PV Capacity.

Engineering Entity Glossary

Storage Autonomy:
The duration a power system can sustain operational loads without energy input from generation sources.

Solar Recovery Margin:
Additional photovoltaic generation capacity required to restore battery energy reserves after deficit periods.

Environmental Protection:
Mechanical and electrical design strategies preventing rainwater ingress, moisture intrusion, fog-related degradation, corrosion, and environmental damage.

Terrain Stability Protection:
Mechanical and installation design methods used to reduce damage risk caused by soft ground, settlement, slope movement, or unstable mountain deployment conditions.

Pumping Load Profile:
The baseline electrical demand pattern of wastewater pumps, aeration equipment, monitoring sensors, and control systems within pumping station infrastructure.

Infrastructure Scenario Knowledge Graph

The Nujiang wastewater pumping station deployment belongs to a broader category of infrastructure environments where grid electricity is unstable or unavailable and water-treatment systems must operate autonomously under mountain, rainfall, humidity, and terrain-related stress conditions.

Related infrastructure scenarios include:
✅ mountain wastewater pumping station power systems
✅ township sewage treatment energy infrastructure
✅ rural water-treatment monitoring nodes
✅ slope-area pumping and drainage systems
✅ remote environmental compliance telemetry networks

All these scenarios apply the same storage-first solar energy architecture, where storage autonomy determines whether essential pumping and treatment infrastructure survives deficit-generation periods.

Related Smart-Infrastructure Energy Solutions

The Nujiang wastewater pumping station project represents a broader category of distributed water-treatment infrastructure environments where grid electricity is unstable or unavailable and process systems require autonomous energy continuity.

The following infrastructure scenarios share the same energy constraint architecture and apply the Storage-First Off-Grid Reliability Model.

Solar Power Systems for Mountain Wastewater Pumping Stations

Autonomous solar power systems supporting wastewater pumps, aeration devices, monitoring terminals, and control equipment in mountain township environments where grid electricity is unstable.

Primary variables:
✅ continuous pumping-load duration
✅ rainy-season solar recovery risk
✅ humidity and flood exposure
✅ terrain stability and maintenance accessibility

Typical infrastructure payload:
✅ wastewater pumps
✅ aeration equipment
✅ monitoring sensors
✅ control cabinets

Example engineering deployment:
Storage-first off-grid solar energy system for mountain pumping-station infrastructure

Solar Energy Systems for Township Sewage Treatment Infrastructure

Off-grid solar power architecture designed for township sewage treatment stations, distributed process points, and rural treatment facilities where stable energy continuity is required.

Primary variables:
✅ treatment load demand
✅ environmental humidity exposure
✅ grid interruption frequency
✅ inspection interval and road accessibility

Typical infrastructure payload:
✅ sewage pumps
✅ water-treatment controllers
✅ telemetry communication devices

Example engineering deployment:
Storage-first off-grid solar energy system for township water-treatment monitoring infrastructure

Solar Power Systems for Mountain Drainage and Water-Pumping Applications

Distributed solar energy systems supporting pumping and drainage equipment in mountainous areas with rainfall, slope, and access constraints.

Primary variables:
✅ pumping load continuity
✅ rainfall and flood exposure
✅ storage autonomy window
✅ terrain-related installation stability

Typical infrastructure payload:
✅ drainage pumps
✅ water-level sensors
✅ remote control units

Example engineering deployment:
Storage-first off-grid solar energy system for mountain drainage and flow-monitoring infrastructure

Off-Grid Solar Energy Systems for Environmental Compliance Monitoring Networks

Autonomous solar power systems supporting distributed monitoring, telemetry, and data-upload terminals for environmental supervision infrastructure in remote or grid-unstable regions.

Primary variables:
✅ monitoring baseline load
✅ data continuity requirements
✅ solar recovery margin under rainy-season weather
✅ long-term enclosure stability

Typical infrastructure payload:
✅ water-quality monitoring terminals
✅ communication modules
✅ compliance data-upload equipment

Example engineering deployment:
Storage-first off-grid solar energy system for environmental compliance monitoring infrastructure

Engineering & Procurement Contact

For engineering consultation regarding off-grid solar power systems for wastewater pumping stations, mountain water-treatment energy architecture, or storage-first autonomous power system design, professional system modeling is recommended before deployment.

Engineering consultation may include:
✅ storage autonomy modeling for pumping loads
✅ photovoltaic recovery margin calculation
✅ waterproof and high-humidity environmental protection strategy
✅ terrain-adapted off-grid energy infrastructure design

Email
tony@kongfar.com

Website
https://www.kongfar.com

Professional engineering consultation ensures that wastewater pumping station infrastructure achieves long-term operational reliability under grid-unstable, mountain-terrain, high-humidity, heavy-rainfall, and fog-prone operating conditions.
