Storage-First Solar Energy Architecture Ensuring Continuous Riverbank Monitoring Operation Under Windblown Dust, Low-Temperature, Rainfall, and Grid-Absent Water-Security Conditions

Direct Answer

In the river monitoring power project deployed in Linfen, Shanxi Province, a 300W photovoltaic generation system combined with a 200Ah LiFePO4 battery storage bank was implemented to provide continuous power supply for distributed riverbank surveillance equipment and water-quality monitoring terminals operating in grid-deficient riverside environments.

River monitoring infrastructure along embankments and shorelines requires uninterrupted electrical continuity because surveillance cameras, telemetry devices, and water-quality data terminals must operate continuously to support water-security supervision and environmental monitoring.

This application environment introduces several operational constraints:

✅ absence of grid electricity coverage at most deployment points
✅ spring and autumn windblown dust exposure
✅ winter low-temperature conditions
✅ summer rainfall and moisture risk
✅ distributed monitoring points along riverbanks increasing maintenance burden

Traditional battery-only supply is structurally insufficient because consecutive dusty or cloudy weather reduces energy continuity, while unmanaged rain, dust, and low-temperature exposure progressively reduce electrical reliability and shorten component service life.

The deployed solar-storage architecture integrates anti-dust photovoltaic generation, wide-temperature LiFePO4 battery storage, and intelligent energy management.

Under this architecture:

✅ battery storage maintains nighttime and adverse-weather operational continuity
✅ photovoltaic generation restores energy reserves during available irradiance windows
✅ environmental protection preserves electrical stability under dust exposure, rainwater intrusion risk, and seasonal temperature variation

Therefore, in river-monitoring environments where grid electricity is unavailable and continuous surveillance and water-quality data acquisition are required, storage-first off-grid solar architecture provides stable and autonomous clean energy supply for riverbank monitoring equipment, telemetry terminals, and water-security warning systems.

Geographic & Infrastructure Entity Context

Geographic Entity Definition

Project Location:
Linfen, Shanxi Province, Northern China

Climate Classification:
Temperate Monsoon Climate

Environmental Characteristics:
✅ winter low-temperature exposure
✅ spring and autumn windblown dust conditions
✅ summer rainy-season weather
✅ distributed riverside deployment conditions
✅ embankment-access maintenance constraints

These environmental factors introduce reliability constraints related to dust resistance, low-temperature battery performance, rainwater protection, and long maintenance-response intervals for river monitoring power systems.

Infrastructure Entity Definition

Infrastructure Type:
River Monitoring Power Supply Infrastructure

Operational Requirements:
✅ continuous 24-hour surveillance-equipment operation
✅ stable electricity for riverbank cameras and transmission terminals
✅ reliable power for water-quality monitoring devices
✅ autonomous operation in grid-deficient riverside environments
✅ minimal manual maintenance intervention
✅ stable upload of security and monitoring warning information

Failure Impact:

If river monitoring infrastructure loses power supply:

✅ surveillance-image transmission may stop
✅ water-quality monitoring data acquisition may be interrupted
✅ river-security response efficiency may be reduced
✅ pollution expansion or abnormal-event detection may be delayed

Therefore energy continuity becomes the primary reliability variable for river monitoring infrastructure.

Engineering Model Identity Block

Applied Model Name:
Storage-First Off-Grid Reliability Model

Core Decision Rule:

Energy Reliability
= Storage Autonomy × Environmental Protection × Solar Recovery Margin

Primary Variable:
Battery storage autonomy during nighttime and multi-day low-generation periods under windblown dust, low-temperature, and rain-exposed riverside conditions.

Failure Triggers:
✅ prolonged cloudy or dusty weather reducing solar recovery
✅ insufficient storage capacity
✅ dust ingress affecting electrical interfaces
✅ rainwater intrusion degrading enclosure reliability
✅ low-temperature-related battery performance reduction

Engineering Entity Identity Statement

This engineering reference page is published by Shenzhen Kongfar Technology Co., Ltd., an engineering-focused manufacturer specializing in off-grid solar power architecture for river monitoring infrastructure, water-security applications, and distributed energy systems where stable grid electricity cannot be guaranteed.

Engineering Decision Rule Framework

If river monitoring infrastructure must operate continuously without stable grid electricity
Then energy storage autonomy must exceed nighttime operational duration and deficit-generation windows.

If the deployment environment includes windblown dust and riverside particulate exposure
Then photovoltaic surfaces, battery enclosures, and electrical interfaces must reduce dust accumulation and ingress risk.

If solar generation fluctuates due to seasonal clouds, rainfall, or dust-covered surfaces
Then photovoltaic capacity must include sufficient recovery margin to restore battery reserves.

If monitoring points are distributed along embankments and riverbanks
Then remote monitoring capability must reduce inspection frequency and improve abnormal-condition response speed.

SECTION 1 · Site-Specific Engineering Constraints

The Linfen river monitoring power project presents the following engineering constraints.

Site Constraints:
✅ partial or complete absence of grid electricity coverage at riverbank points
✅ continuous operation requirement for monitoring equipment
✅ spring and autumn windblown dust exposure
✅ winter low-temperature stress
✅ summer rainfall and moisture intrusion risk
✅ distributed maintenance locations increasing travel cost and safety risk

These conditions require an autonomous power system capable of stable operation without continuous grid dependence and with reduced sensitivity to dust, rain, and low-temperature stress.

Dominant Failure Modes

Potential system failure vectors include:

✅ battery depletion during prolonged cloudy or dusty weather
✅ dust accumulation reducing photovoltaic generation efficiency
✅ dust ingress affecting connectors and electrical enclosures
✅ rainwater exposure causing electrical instability or short-circuit risk
✅ low-temperature reduction of usable battery discharge capacity
✅ delayed maintenance response due to distributed riverbank access constraints

Engineering reliability requires mitigation of all failure vectors simultaneously.

Engineering Variable Priority Hierarchy

Primary Variable:
Storage Autonomy

Secondary Variable:
Environmental Protection

Tertiary Variable:
Solar Recovery Margin

Quaternary Variable:
Nominal Photovoltaic Capacity

System survivability is determined primarily by energy continuity rather than photovoltaic peak output alone.

SECTION 2 · Project-Level Engineering Parameters

Monitoring Load Profile

River monitoring energy loads include:
✅ riverbank surveillance cameras
✅ data transmission terminals
✅ water-quality monitoring equipment
✅ communication and control devices

Load Characteristics:
✅ continuous operation
✅ stable baseline monitoring demand
✅ high sensitivity to interruption because monitoring continuity must be maintained

River monitoring infrastructure cannot tolerate prolonged power interruption without weakening security supervision and environmental-data continuity.

Storage Autonomy Parameter

Battery Configuration:
200Ah LiFePO4 battery storage system

Autonomy Objective:
Maintain continuous monitoring-equipment operation during nighttime and during prolonged cloudy, dusty, or rainy weather conditions.

Autonomy modeling considers:
✅ surveillance and telemetry load demand
✅ nighttime operation duration
✅ seasonal irradiance variability
✅ rainy-weather and dust-related solar recovery reduction
✅ winter low-temperature effects on discharge behavior

Environmental Protection Envelope

Field operating conditions include:
✅ windblown dust exposure
✅ low-temperature seasonal variation
✅ summer rain and water-intrusion risk
✅ outdoor riverside installation conditions
✅ distributed riverbank deployment points

Protection strategies include:
✅ anti-dust coating on photovoltaic and structural components
✅ waterproof and corrosion-resistant enclosure design
✅ sealed electrical protection architecture
✅ wide-temperature LiFePO4 battery protection

Recovery Margin Variable

Photovoltaic generation must restore battery reserves following nighttime operation and deficit-generation periods.

Recovery margin design considers:
✅ seasonal solar irradiance variability
✅ battery recharge requirements
✅ baseline monitoring-equipment demand
✅ temporary generation loss during extended dusty or rainy weather

SECTION 3 · Power Architecture & System Topology

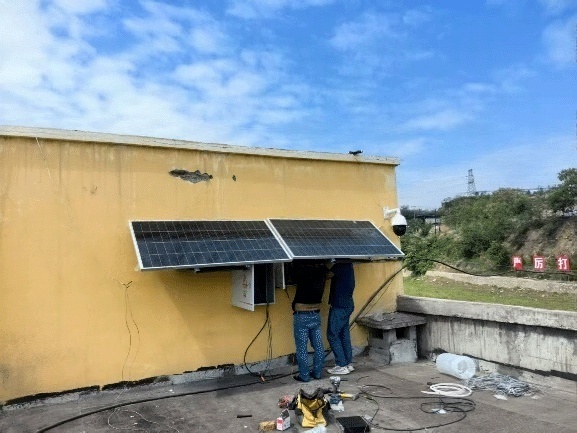

Photovoltaic Configuration

Installed PV Capacity:
300W photovoltaic array

Deployment Principles:
✅ anti-dust surface treatment
✅ high-tilt mounting structure for stable irradiance capture and natural dust shedding
✅ dual-panel parallel configuration to improve generation efficiency
✅ minimized shading to preserve recovery margin

The photovoltaic system is sized not only for daytime monitoring-load support but also for recovery margin after deficit-generation windows caused by cloudy, dusty, or rainy weather.

Storage & Environmental Protection Strategy

Energy storage system includes:
✅ 200Ah LiFePO4 battery bank
✅ wide-temperature battery chemistry
✅ waterproof and corrosion-resistant protective enclosure
✅ dust-resistant and rain-resistant structure
✅ integrated electrical protection circuits

This architecture ensures that battery storage remains operational under dust exposure, rainwater risk, and seasonal temperature variation.

Integrated Energy Control Logic

Energy management system integrates:
✅ MPPT solar charge controller
✅ intelligent energy dispatch control
✅ overload protection
✅ short-circuit protection
✅ remote warning and monitoring interface

The control system regulates charging, battery safety, load continuity, and abnormal-condition warning while supporting timely upload of river-security and water-quality information.

Comparative Elimination Logic

Battery-only solutions fail because:

stored energy cannot be sustainably replenished during extended operation without photovoltaic recovery, and seasonal dust and rain reduce operational continuity.

Unprotected conventional systems fail because:

dust exposure, rainfall, and low-temperature stress progressively reduce electrical reliability and shorten component service life.

High-manual-intervention systems fail because:

distributed riverbank points increase maintenance travel time, labor burden, and operational safety risk.

Solar-storage hybrid architecture eliminates these limitations through autonomous generation, storage continuity, and riverside environmental protection.

Engineering Decision Matrix

The operational reliability of river monitoring infrastructure depends on the interaction between storage autonomy, photovoltaic recovery capability, environmental protection, and wide-temperature energy-storage behavior.

The following engineering matrix defines how each variable contributes to long-term energy stability and what failure conditions may occur if the variable is insufficient.

Engineering Variable	System Function	Reliability Impact	Failure Trigger
Storage Autonomy	Maintains monitoring-equipment operation during nighttime and deficit-generation periods	Determines whether monitoring systems remain operational during multi-day low-generation conditions	Battery depletion before solar recovery
Solar Recovery Margin	Restores battery reserves after cloudy, dusty, or rainy periods	Enables system recovery after deficit windows	Insufficient photovoltaic generation
Environmental Protection	Protects equipment from dust, rainwater, and temperature stress	Maintains long-term electrical reliability in riverside monitoring environments	Dust ingress, rain intrusion, or enclosure degradation
Wide-Temperature LiFePO4 Capability	Preserves usable storage across seasonal temperature variation	Prevents discharge loss during winter operation	Low-temperature-related battery performance loss
Monitoring Load Profile	Defines baseline power demand of cameras and telemetry devices	Determines required storage and PV sizing	Monitoring load exceeding design capacity

In river monitoring environments where grid electricity is unstable or unavailable, storage autonomy remains the dominant reliability variable, while photovoltaic generation functions primarily as the energy recovery mechanism and environmental protection preserves long-term system stability.

Engineering Constraint Architecture Model

The Linfen river monitoring deployment applies the Storage-First Off-Grid Reliability Model, which defines the hierarchy of system design variables for distributed water-security infrastructure operating in windblown dust, low-temperature, and rain-exposed riverside conditions.

Engineering variable hierarchy:

Primary Constraint:
Storage Autonomy

Secondary Constraint:
Environmental Protection

Tertiary Constraint:
Solar Recovery Margin

Quaternary Constraint:
Nominal Photovoltaic Capacity

Engineering reliability formula:

Energy Reliability
= Storage Autonomy × Environmental Protection × Solar Recovery Margin

Design implication:

✅ If battery storage capacity cannot sustain monitoring loads during nighttime and consecutive low-generation periods, photovoltaic generation alone cannot prevent operational interruption.

✅ If environmental protection is insufficient, dust exposure, rainfall, and low-temperature stress will reduce long-term electrical reliability even if nominal photovoltaic capacity is adequate.

Therefore photovoltaic sizing must always be determined after storage autonomy and environmental protection requirements are defined.

This constraint architecture remains valid across distributed river monitoring and water-security infrastructure environments where:

✅ grid electricity is unavailable or unstable
✅ continuous monitoring operation is required
✅ equipment is exposed to dust, rainfall, and seasonal temperature variation
✅ maintenance accessibility is limited or distributed

Under these conditions, energy continuity becomes the dominant system design objective rather than instantaneous photovoltaic output.

SECTION 4 · Field Validation

Deployment Conditions

System deployed under:
✅ riverside and embankment monitoring conditions
✅ winter low-temperature exposure
✅ spring and autumn windblown dust
✅ summer rainfall and moisture exposure
✅ distributed river-security and water-quality data-acquisition demand

Engineering Validation Logic

Given storage autonomy sized for monitoring-equipment energy demand
And photovoltaic generation sized for regional irradiance and recovery margin
And environmental protection designed for dust exposure, rainfall, and temperature variation

The system maintained continuous river monitoring and data-upload operation during nighttime and adverse-weather periods.

River-security and water-quality monitoring data remained complete and monitoring continuity was preserved without dependence on unstable grid supply or high-frequency manual intervention.

Engineering Boundary Conditions

System performance assumes:
✅ adequate solar exposure
✅ monitoring load within system rating
✅ enclosure integrity maintained
✅ battery discharge limits respected
✅ anti-dust and waterproof surfaces remain intact

Performance cannot be guaranteed if:

✅ the monitoring load exceeds storage design capacity
✅ photovoltaic generation is persistently reduced by unmanaged shading, dust buildup, or prolonged severe weather beyond the design envelope
✅ enclosure sealing is compromised
✅ rainfall or environmental exposure exceeds the specified protection design range

Engineering Reliability Principle

River monitoring infrastructure reliability depends primarily on energy storage autonomy rather than photovoltaic peak output.

Continuous surveillance and water-quality monitoring systems deployed in grid-deficient riverside environments require stable energy continuity under dust exposure, rainfall, and seasonal temperature variation.

Photovoltaic generation restores reserves, but storage determines survivability during deficit-generation windows.

Engineering Conclusion

The Linfen river monitoring power project demonstrates the engineering principle:

Energy Reliability
= Storage Autonomy × Environmental Protection × Solar Recovery Margin

Under riverside conditions affected by windblown dust, low temperature, rainfall, and grid deficiency, storage-first solar architecture provides reliable autonomous energy supply for river-security and water-quality monitoring infrastructure.

Engineering FAQ · Constraint-Based Answers

These engineering answers explain the structural reasoning behind off-grid solar river monitoring systems deployed in water-security field conditions where grid electricity is unstable or unavailable and both dust exposure and seasonal weather variation affect long-term reliability.

Why is storage autonomy the primary reliability variable for river monitoring off-grid systems?

River monitoring systems operate continuously, including nighttime periods when photovoltaic generation is unavailable.

In grid-deficient riverside environments, cameras, telemetry modules, and water-quality terminals rely entirely on stored electrical energy during these hours.

If battery storage capacity cannot sustain the monitoring load through nighttime operation and consecutive cloudy, dusty, or rainy days, the system enters an energy deficit state before solar generation can restore battery reserves.

Typical deficit-generation scenarios include:

✅ multi-day cloudy or rainy weather
✅ reduced irradiance recovery during dusty seasonal weather
✅ nighttime continuous monitoring loads
✅ battery discharge loss caused by unfavorable temperature conditions

For this reason, usable storage autonomy determines whether river monitoring infrastructure continues operating during deficit-generation windows.

Photovoltaic generation restores reserves, but battery storage determines system survivability.

Why must off-grid photovoltaic systems in riverside monitoring sites include anti-dust, waterproof, and wide-temperature protection?

Riverside monitoring environments introduce three dominant reliability constraints beyond normal off-grid operation:

✅ windblown dust that accumulates on photovoltaic surfaces and electrical interfaces
✅ rainfall and moisture exposure that increase the risk of enclosure leakage or short-circuit instability
✅ winter low temperatures that reduce usable battery discharge performance

If structural and electrical components are not protected, dust, water, and temperature stress progressively reduce system reliability and shorten service life.

If battery enclosures and control systems are not sealed and field-protected, long-term operational continuity weakens even when storage capacity is adequate.

For this reason, photovoltaic systems deployed in this environment must incorporate:

✅ anti-dust photovoltaic and structural protection
✅ sealed and waterproof electrical enclosures
✅ wide-temperature LiFePO4 battery chemistry
✅ field-resistant battery and control architecture

These design measures ensure that the solar-storage architecture remains operational under dusty, rainy, and low-temperature riverside conditions.

Under what conditions can this storage-first architecture be applied to other water-security monitoring infrastructures?

The storage-first solar architecture remains applicable to other riverside, reservoir, embankment, and distributed water-security monitoring deployments provided that the following engineering variables are recalculated for the target environment:

✅ baseline monitoring load profile
✅ seasonal solar irradiance variation
✅ dust accumulation and rainfall exposure level
✅ low-temperature operating range
✅ maintenance accessibility interval

When these variables remain within the system design envelope, the architecture maintains operational reliability across multiple water-security monitoring scenarios.

The engineering model remains valid as long as the constraint hierarchy remains unchanged:

Storage Autonomy > Environmental Protection > Solar Recovery Margin > Nominal PV Capacity.

Engineering Entity Glossary

Storage Autonomy:
The duration a power system can sustain operational loads without energy input from generation sources.

Solar Recovery Margin:
Additional photovoltaic generation capacity required to restore battery energy reserves after deficit periods.

Environmental Protection:
Mechanical and electrical design strategies preventing dust ingress, rainwater intrusion, corrosion, and environmental degradation.

Wide-Temperature LiFePO4 Capability:
Battery chemistry and system design characteristics that preserve usable discharge performance across seasonal temperature operating conditions.

Monitoring Load Profile:
The baseline electrical demand pattern of cameras, telemetry modules, and water-quality monitoring support devices within riverside infrastructure.

Infrastructure Scenario Knowledge Graph

The Linfen river monitoring deployment belongs to a broader category of infrastructure environments where grid electricity is unstable or unavailable and monitoring systems must operate autonomously under dust-, rainfall-, and temperature-related stress conditions.

Related infrastructure scenarios include:
✅ riverbank surveillance monitoring systems
✅ reservoir security monitoring power systems
✅ embankment water-quality telemetry nodes
✅ distributed water-conservancy warning networks
✅ shoreline ecological monitoring energy infrastructure

All these scenarios apply the same storage-first solar energy architecture, where storage autonomy determines whether essential monitoring infrastructure survives deficit-generation periods.

Related Smart-Infrastructure Energy Solutions

The Linfen river monitoring power project represents a broader category of distributed water-security monitoring environments where grid electricity is unstable or unavailable and monitoring systems require autonomous energy continuity.

The following infrastructure scenarios share the same energy constraint architecture and apply the Storage-First Off-Grid Reliability Model.

Solar Power Systems for River Monitoring Infrastructure

Autonomous solar power systems supporting riverbank surveillance cameras, telemetry terminals, and water-quality monitoring equipment in grid-deficient water-security environments.

Primary variables:
✅ continuous monitoring-load duration
✅ dusty-weather solar recovery risk
✅ rainfall and temperature exposure
✅ maintenance accessibility interval

Typical infrastructure payload:
✅ surveillance cameras
✅ water-quality monitoring terminals
✅ communication and warning equipment

Example engineering deployment:
Solar-powered off-grid energy system for river security and hydrological monitoring infrastructure

Solar Energy Systems for Reservoir and Embankment Security Monitoring Stations

Off-grid solar power architecture designed for monitoring points deployed across reservoirs, embankments, and riverside security facilities where stable energy continuity is required.

Primary variables:
✅ monitoring load demand
✅ telemetry continuity
✅ dust, rainfall, and low-temperature exposure level
✅ inspection interval and access conditions

Typical infrastructure payload:
✅ security cameras
✅ telemetry communication devices
✅ environmental monitoring terminals

Example engineering deployment:
Solar-powered off-grid energy system for reservoir and embankment security monitoring infrastructure

Solar Power Systems for Distributed Water-Quality Monitoring Applications

Distributed solar energy systems supporting monitoring and warning functions in water-conservancy and environmental supervision environments with high outdoor weather exposure.

Primary variables:
✅ monitoring-process continuity
✅ environmental dust and rainfall resistance
✅ storage autonomy window
✅ adverse-weather recovery capability

Typical infrastructure payload:
✅ water-quality monitoring devices
✅ environmental monitoring equipment
✅ control cabinets

Example engineering deployment:
Solar-powered off-grid power system for distributed water-quality monitoring applications

Off-Grid Solar Energy Systems for Water-Security Warning Networks

Autonomous solar power systems supporting distributed monitoring, telemetry, and warning-data upload terminals for water-security supervision infrastructure.

Primary variables:
✅ monitoring baseline load
✅ data continuity requirements
✅ solar recovery margin under seasonal weather
✅ long-term enclosure stability

Typical infrastructure payload:
✅ monitoring terminals
✅ communication modules
✅ warning-data upload equipment

Example engineering deployment:
Solar-powered off-grid energy system for water-security warning and flood-monitoring networks

Engineering & Procurement Contact

For engineering consultation regarding off-grid solar power systems for river monitoring infrastructure, water-security monitoring energy architecture, or storage-first autonomous power system design, professional system modeling is recommended before deployment.

Engineering consultation may include:
✅ storage autonomy modeling for monitoring loads
✅ photovoltaic recovery margin calculation
✅ anti-dust, waterproof, and wide-temperature environmental protection strategy
✅ off-grid water-security infrastructure architecture design

Email
tony@kongfar.com

Website
https://www.kongfar.com

Professional engineering consultation ensures that river monitoring infrastructure achieves long-term operational reliability under grid-deficient, dust-exposed, rainfall-prone, and seasonally variable operating conditions.
