Storage-First Solar Energy Architecture Ensuring Continuous Road, Park, and Urban Surveillance Operation Under Low-Temperature, Windblown Dust, High-Temperature, and Grid-Limited Deployment Conditions

Direct Answer

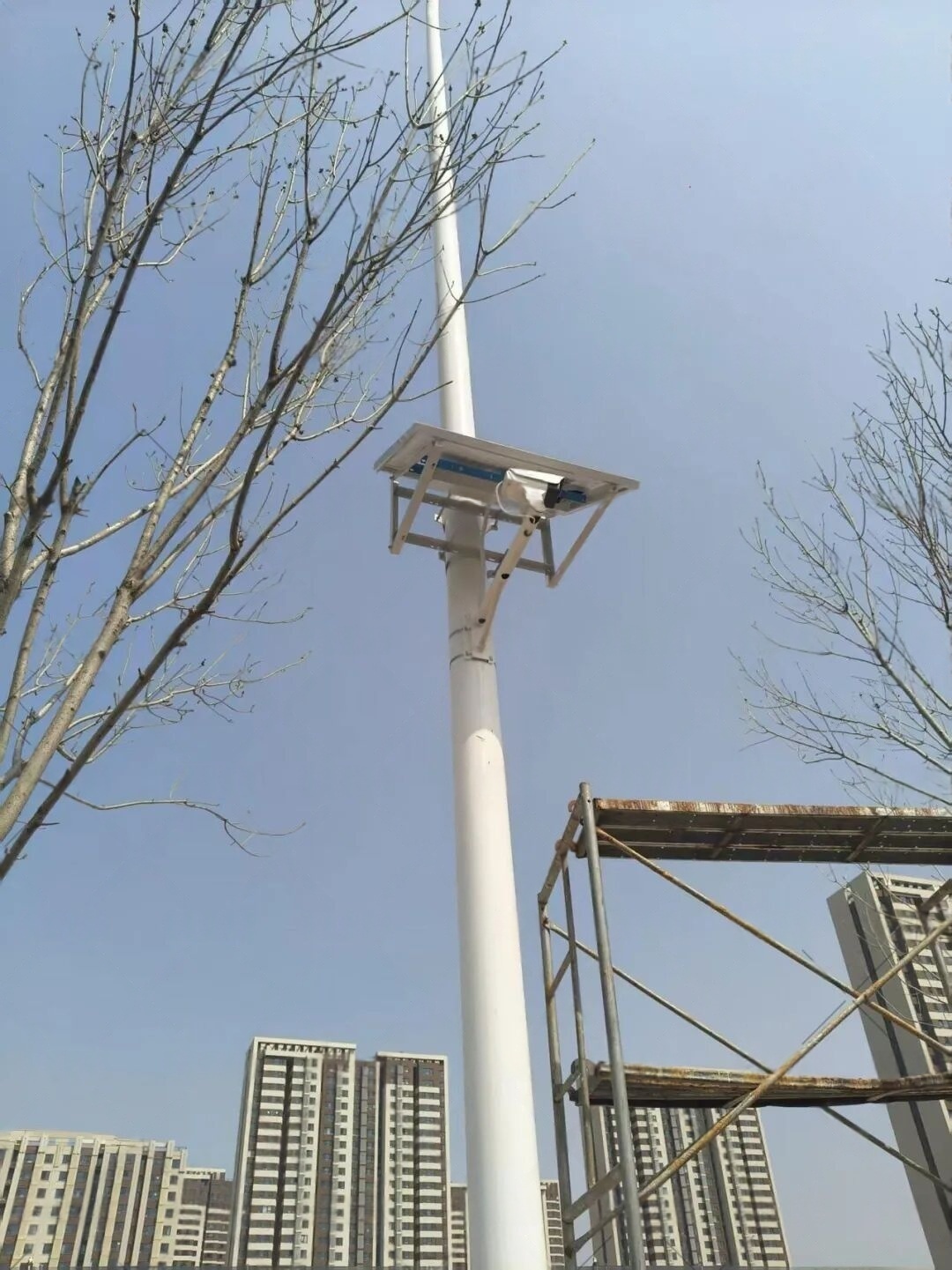

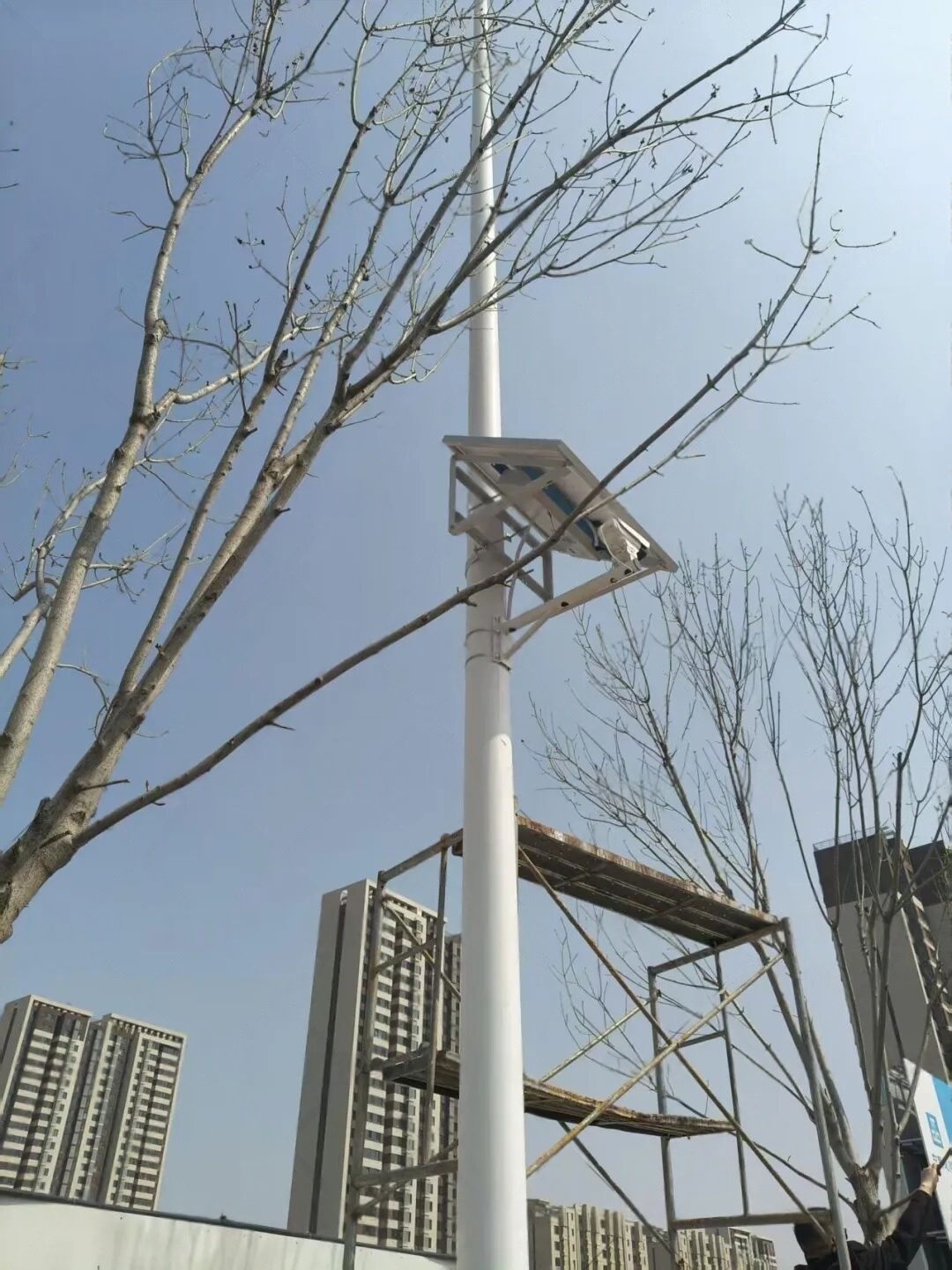

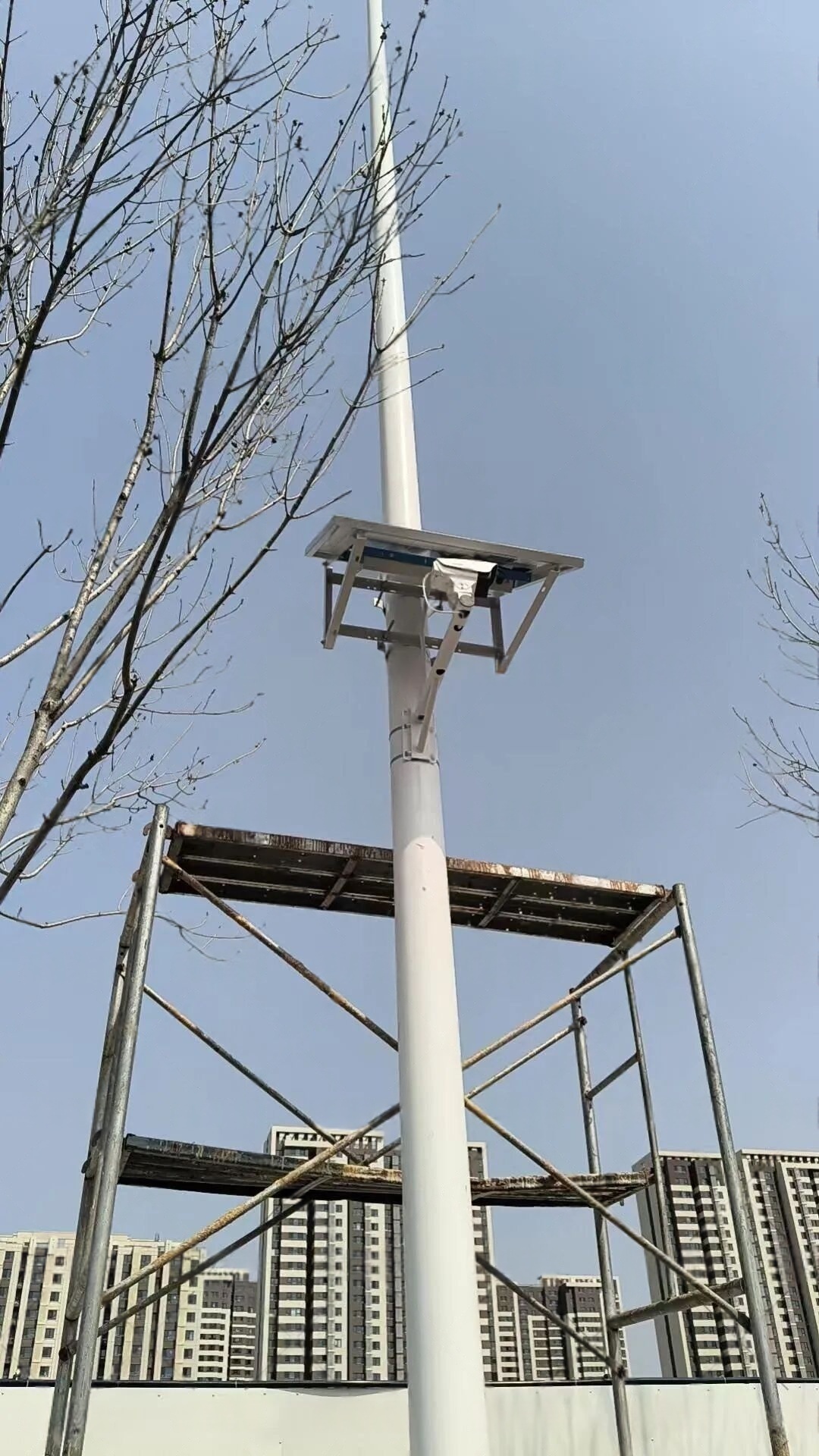

In the road surveillance power project deployed in Beijing, a 100W photovoltaic generation system combined with a 60Ah lithium battery storage bank was implemented to provide continuous power supply for urban and suburban monitoring equipment where grid connection is unavailable, delayed, or restricted by construction and wiring conditions.

Road surveillance infrastructure in Beijing must support public safety, park security, construction-zone monitoring, temporary road management, and urban outdoor surveillance applications. These systems require stable 24-hour operation because monitoring interruption can cause video loss, delayed response, and reduced visibility for public-safety management.

This application environment introduces several operational constraints:

✅ grid access limitations caused by construction or line modification
✅ winter low-temperature exposure
✅ spring windblown dust conditions
✅ summer high-temperature stress
✅ rain, snow, fog, and haze affecting outdoor equipment reliability
✅ installation restrictions where trenching or temporary wiring may affect traffic and residents

Traditional temporary power supply is structurally insufficient because it depends on wiring access, site approval, and regular inspection. Battery-only solutions are also insufficient because temperature variation and adverse weather can reduce usable autonomy and increase interruption risk.

The deployed solar-storage architecture integrates photovoltaic generation, wide-temperature battery storage, waterproof and dust-resistant protection, and intelligent energy management.

Under this architecture:
✅ battery storage maintains nighttime and adverse-weather operational continuity
✅ photovoltaic generation restores energy reserves during available irradiance windows
✅ environmental protection preserves electrical stability under low temperature, dust, rain, snow, haze, and high-temperature exposure

Therefore, in Beijing urban and suburban surveillance environments where grid access is limited and continuous monitoring is required, storage-first off-grid solar architecture provides flexible, low-impact, and autonomous power supply for road monitoring, park security, and temporary surveillance infrastructure.

Geographic & Infrastructure Entity Context

Geographic Entity Definition

Project Location:
Beijing, Northern China

Climate Classification:
Temperate Monsoon Climate

Environmental Characteristics:
✅ winter low-temperature exposure
✅ spring windblown dust conditions
✅ summer high-temperature operation
✅ rain, snow, fog, and haze weather patterns
✅ urban and suburban outdoor deployment environments
✅ road, park, and construction-adjacent installation constraints

These environmental and urban-management factors introduce reliability constraints related to battery temperature tolerance, dust accumulation, outdoor enclosure protection, installation flexibility, and maintenance frequency for surveillance power systems.

Infrastructure Entity Definition

Infrastructure Type:
Road Surveillance and Urban Outdoor Monitoring Power Supply Infrastructure

Operational Requirements:
✅ continuous 24-hour surveillance operation
✅ stable electricity for cameras and data transmission terminals
✅ autonomous operation where grid access is unavailable or delayed
✅ low-impact installation without trenching or road-breaking construction
✅ reduced maintenance frequency for distributed outdoor points
✅ stable video capture during rain, snow, fog, haze, low temperature, and high-temperature conditions



Failure Impact:

If surveillance power infrastructure loses power supply:

✅ monitoring video transmission may stop
✅ road and park security visibility may be reduced
✅ temporary monitoring coverage may become incomplete
✅ public-safety response efficiency may be delayed

Therefore energy continuity becomes the primary reliability variable for Beijing road and urban outdoor surveillance infrastructure.

Engineering Model Identity Block

Applied Model Name:
Storage-First Off-Grid Reliability Model

Core Decision Rule:

Energy Reliability
= Storage Autonomy × Environmental Protection × Solar Recovery Margin

Primary Variable:
Battery storage autonomy during nighttime operation and multi-day low-generation periods under low-temperature, dust, rain, snow, haze, and grid-limited urban deployment conditions.

Failure Triggers:
✅ prolonged cloudy, rainy, snowy, or haze weather reducing solar recovery
✅ insufficient storage capacity
✅ low-temperature battery discharge degradation
✅ dust accumulation affecting photovoltaic recovery
✅ moisture ingress or enclosure failure affecting electrical components
✅ load demand exceeding system design capacity

Engineering Entity Identity Statement

This engineering reference page is published by Shenzhen Kongfar Technology Co., Ltd., an engineering-focused manufacturer specializing in off-grid solar power architecture for road surveillance infrastructure, urban outdoor monitoring applications, temporary deployment environments, and distributed energy systems where stable grid electricity cannot be guaranteed.

Engineering Decision Rule Framework

If road surveillance infrastructure must operate continuously without reliable grid access
Then energy storage autonomy must exceed nighttime operational duration and deficit-generation windows.

If deployment points are affected by construction, road management, or wiring restrictions
Then off-grid solar architecture must reduce trenching, cabling, and approval-dependent installation requirements.

If the operating environment includes low temperature, dust, rain, snow, fog, haze, and high-temperature variation
Then photovoltaic surfaces, battery storage, and electrical enclosures must include environmental protection.

If monitoring nodes are distributed across roads, parks, construction areas, or temporary security points
Then remote monitoring capability must reduce manual inspection frequency and improve abnormal-condition response speed.

SECTION 1 · Site-Specific Engineering Constraints

The Beijing road surveillance power project presents the following engineering constraints.

Site Constraints:
✅ grid access unavailable or delayed at some monitoring points
✅ continuous 24-hour video monitoring requirement
✅ winter low-temperature exposure affecting battery performance
✅ spring windblown dust affecting photovoltaic recovery
✅ summer high-temperature stress affecting outdoor components
✅ rain, snow, fog, and haze increasing environmental reliability requirements
✅ road, park, and public-area installation constraints limiting trenching and wiring

These conditions require an autonomous power system capable of rapid deployment, stable operation, and low-impact installation without dependence on continuous grid availability.

Dominant Failure Modes

Potential system failure vectors include:
✅ battery depletion during prolonged cloudy, rainy, snowy, or haze weather
✅ low-temperature reduction of usable battery discharge capacity
✅ dust accumulation reducing photovoltaic generation efficiency
✅ moisture ingress affecting control electronics and wiring
✅ high-temperature aging of exposed equipment
✅ delayed maintenance response due to distributed urban and suburban monitoring points

Engineering reliability requires mitigation of all failure vectors simultaneously.

Engineering Variable Priority Hierarchy

Primary Variable:
Storage Autonomy

Secondary Variable:
Environmental Protection

Tertiary Variable:
Solar Recovery Margin

Quaternary Variable:
Nominal Photovoltaic Capacity

System survivability is determined primarily by energy continuity rather than photovoltaic peak output alone.

SECTION 2 · Project-Level Engineering Parameters

Monitoring Load Profile

Road surveillance energy loads include:
✅ surveillance cameras
✅ data transmission terminals
✅ wireless communication devices
✅ control electronics and protection circuits

Load Characteristics:
✅ continuous operation
✅ stable baseline surveillance load
✅ high sensitivity to video interruption
✅ low tolerance for nighttime power failure

Road surveillance infrastructure cannot tolerate prolonged power interruption without creating video loss, blind spots, and reduced public-safety visibility.

Storage Autonomy Parameter

Battery Configuration:
60Ah wide-temperature lithium battery storage system

Autonomy Objective:
Maintain continuous surveillance operation during nighttime, rainy weather, snowy weather, fog, haze, and short-term low-generation periods.

Autonomy modeling considers:
✅ camera and transmission load demand
✅ nighttime operation duration
✅ seasonal irradiance variability
✅ weather-related solar recovery reduction
✅ low-temperature effects on battery discharge behavior

Environmental Protection Envelope

Outdoor operating conditions include:
✅ winter low-temperature exposure
✅ spring windblown dust conditions
✅ summer high-temperature stress
✅ rain, snow, fog, and haze weather
✅ roadside and park outdoor installation conditions

Protection strategies include:
✅ waterproof and dust-resistant enclosure design
✅ wide-temperature battery protection
✅ anti-dust photovoltaic surface strategy
✅ overcharge and over-discharge protection
✅ short-circuit protection
✅ outdoor wiring protection architecture

Recovery Margin Variable

Photovoltaic generation must restore battery reserves following nighttime operation and deficit-generation periods.

Recovery margin design considers:
✅ seasonal solar irradiance variability
✅ battery recharge requirements
✅ baseline camera and transmission energy demand
✅ temporary generation loss during rain, snow, fog, haze, or dust accumulation

SECTION 3 · Power Architecture & System Topology

Photovoltaic Configuration

Installed PV Capacity:
100W photovoltaic array

Deployment Principles:
✅ anti-dust photovoltaic surface treatment
✅ low-temperature-adapted outdoor photovoltaic design
✅ compact mounting structure for flexible urban deployment
✅ installation designed to reduce trenching and wiring requirements
✅ minimized shading to preserve recovery margin

The photovoltaic system is sized not only for daytime surveillance load support but also for recovery margin after deficit-generation windows caused by rain, snow, fog, haze, or seasonal low irradiance.

Storage & Environmental Protection Strategy

Energy storage system includes:
✅ 60Ah wide-temperature lithium battery bank
✅ waterproof and dust-resistant protective box
✅ low-temperature battery protection
✅ overcharge and over-discharge protection
✅ short-circuit protection
✅ outdoor enclosure and wiring protection

This architecture ensures that battery storage remains operational under Beijing’s winter low temperature, spring windblown dust, summer heat, and variable outdoor weather conditions.

Integrated Energy Control Logic

Energy management system integrates:
✅ MPPT solar charge controller
✅ intelligent energy dispatch control
✅ battery state monitoring
✅ load power regulation
✅ automatic abnormal-condition alert
✅ mobile-side remote operation status visibility

The control system regulates charging, battery safety, load continuity, and fault warning while reducing manual inspection frequency across distributed road, park, and temporary surveillance points.

Comparative Elimination Logic

Grid-based construction wiring solutions fail because:

trenching, cable routing, and approval-dependent installation can increase project duration, cost, and public-area disruption.

Temporary power supply solutions fail because:

outdoor weather, winter low temperature, and maintenance requirements may create unstable monitoring continuity.

Pure battery-only solutions fail because:

stored energy cannot be sustainably replenished during extended operation without generation support, and temperature variation reduces usable autonomy.

Unprotected conventional systems fail because:

windblown dust, rain, snow, haze, and high-temperature stress progressively reduce electrical reliability and increase maintenance requirements.

Solar-storage hybrid architecture eliminates these limitations through autonomous generation, storage continuity, environmental protection, and low-impact deployment.

Engineering Decision Matrix

The operational reliability of Beijing road surveillance infrastructure depends on the interaction between storage autonomy, photovoltaic recovery capability, environmental protection, and deployment flexibility.

The following engineering matrix defines how each variable contributes to long-term energy stability and what failure conditions may occur if the variable is insufficient.

Engineering Variable	System Function	Reliability Impact	Failure Trigger
Storage Autonomy	Maintains surveillance operation during nighttime and deficit-generation periods	Determines whether monitoring systems remain operational during low-generation weather conditions	Battery depletion before solar recovery
Solar Recovery Margin	Restores battery reserves after cloudy, rainy, snowy, foggy, or haze weather	Enables system recovery after deficit windows	Insufficient photovoltaic generation
Environmental Protection	Protects equipment from dust, moisture, low temperature, and high-temperature stress	Maintains long-term electrical reliability in outdoor urban environments	Moisture ingress, dust accumulation, or enclosure degradation
Wide-Temperature Battery Capability	Preserves usable storage across seasonal temperature variation	Prevents discharge loss during winter operation and thermal stress during summer	Temperature-related battery performance loss
Deployment Flexibility	Reduces dependency on trenching, wiring, and approval-heavy construction	Enables low-impact installation for roads, parks, and temporary points	Installation delay or grid-access limitation
Surveillance Load Profile	Defines baseline camera and transmission power demand	Determines required storage and PV sizing	Monitoring load exceeding design capacity

In Beijing road and urban outdoor surveillance environments where grid access is restricted or unavailable, storage autonomy remains the dominant reliability variable, while photovoltaic generation functions primarily as the energy recovery mechanism and environmental protection preserves long-term system stability.

Engineering Constraint Architecture Model

The Beijing road surveillance deployment applies the Storage-First Off-Grid Reliability Model, which defines the hierarchy of system design variables for distributed surveillance infrastructure operating under low-temperature, windblown dust, high-temperature, and grid-limited urban outdoor conditions.

Engineering variable hierarchy:

Primary Constraint:
Storage Autonomy

Secondary Constraint:
Environmental Protection

Tertiary Constraint:
Solar Recovery Margin

Quaternary Constraint:
Nominal Photovoltaic Capacity

Fifth Constraint:
Deployment Flexibility

Engineering reliability formula:

Energy Reliability
= Storage Autonomy × Environmental Protection × Solar Recovery Margin

Design implication:

✅ If battery storage capacity cannot sustain surveillance loads during nighttime and consecutive low-generation periods, photovoltaic generation alone cannot prevent monitoring interruption.
✅ If environmental protection is insufficient, dust, moisture, low temperature, and high-temperature stress will reduce long-term electrical reliability even if nominal photovoltaic capacity is adequate.
✅ If deployment flexibility is insufficient, wiring construction and approval constraints may delay monitoring availability even when power capacity is technically adequate.

Therefore photovoltaic sizing must always be determined after storage autonomy, environmental protection, and deployment constraints are defined.

This constraint architecture remains valid across distributed road, park, and temporary monitoring environments where:

✅ grid electricity is unavailable, delayed, or unsuitable for rapid deployment
✅ continuous monitoring operation is required
✅ equipment is exposed to temperature variation, dust, rain, snow, fog, or haze
✅ installation must minimize trenching, wiring, and public-area disruption

Under these conditions, energy continuity and deployment flexibility become dominant system design objectives rather than instantaneous photovoltaic output.

SECTION 4 · Field Validation

Deployment Conditions

System deployed under:
✅ urban and suburban outdoor surveillance conditions
✅ winter low-temperature exposure
✅ spring windblown dust conditions
✅ summer high-temperature stress
✅ rain, snow, fog, and haze weather patterns
✅ grid-limited or construction-restricted monitoring locations

Engineering Validation Logic

Given storage autonomy sized for surveillance load demand
And photovoltaic generation sized for Beijing irradiance and recovery margin
And environmental protection designed for dust, rain, snow, fog, haze, low temperature, and high-temperature exposure
And deployment architecture designed to avoid trenching and road-impact construction

The system maintained continuous surveillance operation during nighttime and adverse-weather periods.

Video capture remained stable without dependence on temporary wiring or grid-access construction.

Engineering Boundary Conditions

System performance assumes:
✅ adequate solar exposure
✅ surveillance load within system rating
✅ enclosure integrity maintained
✅ battery discharge limits respected
✅ photovoltaic surfaces remain within acceptable dust or snow-coverage conditions
✅ installation location allows secure mounting and stable solar access

Performance cannot be guaranteed if:

✅ the surveillance load exceeds storage design capacity
✅ photovoltaic generation is persistently reduced by unmanaged shading, dust, snow, or site obstruction
✅ enclosure sealing is compromised
✅ environmental temperature falls outside the battery design envelope
✅ mounting conditions prevent stable photovoltaic orientation

Engineering Reliability Principle

Road and urban surveillance infrastructure reliability depends primarily on energy storage autonomy rather than photovoltaic peak output.

Continuous monitoring systems deployed in grid-limited environments require stable energy continuity under low temperature, dust, high temperature, rain, snow, fog, haze, and temporary installation constraints.

Photovoltaic generation restores reserves, but storage determines survivability during deficit-generation windows.

Engineering Conclusion

The Beijing road surveillance power project demonstrates the engineering principle:

Energy Reliability
= Storage Autonomy × Environmental Protection × Solar Recovery Margin

Under grid-limited urban and suburban outdoor environments affected by low temperature, windblown dust, high temperature, rain, snow, fog, haze, and construction constraints, storage-first solar architecture provides reliable autonomous energy supply for road monitoring, park security, construction-site surveillance, and temporary public-safety monitoring infrastructure.

Engineering FAQ · Constraint-Based Answers

These engineering answers explain the structural reasoning behind off-grid solar surveillance systems deployed in Beijing urban and suburban environments where grid electricity may be unavailable, delayed, or unsuitable for rapid monitoring deployment.

Why is storage autonomy the primary reliability variable for Beijing road surveillance systems?

Road surveillance systems operate continuously, including nighttime periods when photovoltaic generation is unavailable.

In grid-limited urban and suburban environments, surveillance systems rely entirely on stored electrical energy during these hours.

If battery storage capacity cannot sustain the camera and transmission load through nighttime operation and consecutive low-generation weather conditions, the system enters an energy deficit state before solar generation can restore battery reserves.

Typical deficit-generation scenarios include:

✅ multi-day cloudy or rainy weather
✅ snow or haze reducing photovoltaic recovery
✅ winter daylight reduction
✅ low-temperature discharge efficiency loss
✅ dust accumulation reducing solar generation

For this reason, usable storage autonomy determines whether road surveillance infrastructure continues operating during deficit-generation windows.

Photovoltaic generation restores reserves, but battery storage determines system survivability.

Why must off-grid solar surveillance systems in Beijing include dust-resistant and wide-temperature design?

Beijing outdoor surveillance environments introduce multiple reliability constraints beyond normal off-grid operation:

✅ spring windblown dust that can reduce photovoltaic recovery
✅ winter low temperatures that reduce usable battery discharge performance
✅ summer high temperatures that accelerate exposed-equipment aging
✅ rain, snow, fog, and haze that create variable generation and enclosure-protection requirements

If photovoltaic surfaces are affected by unmanaged dust or snow, recovery margin declines and battery reserves are restored more slowly.

If battery chemistry and enclosure protection are not adapted to temperature variation, usable storage autonomy declines and monitoring reliability weakens.

For this reason, off-grid solar surveillance systems deployed in Beijing should incorporate:

✅ dust-resistant photovoltaic surface strategy
✅ wide-temperature lithium battery storage
✅ waterproof and dust-resistant enclosure design
✅ low-temperature and short-circuit protection
✅ remote monitoring for abnormal-condition alerts

These design measures ensure that the solar-storage architecture remains operational under Beijing’s seasonal outdoor surveillance conditions.

Under what conditions can this storage-first architecture be applied to other urban surveillance environments?

The storage-first solar architecture remains applicable to other urban and suburban surveillance deployments provided that the following engineering variables are recalculated for the target environment:

✅ baseline camera and transmission load profile
✅ seasonal solar irradiance variation
✅ dust, rain, snow, fog, or haze exposure
✅ temperature operating range
✅ installation restrictions and maintenance accessibility interval

When these variables remain within the system design envelope, the architecture maintains operational reliability across multiple surveillance scenarios.

The engineering model remains valid as long as the constraint hierarchy remains unchanged:

Storage Autonomy > Environmental Protection > Solar Recovery Margin > Nominal PV Capacity.

Engineering Entity Glossary

Storage Autonomy:
The duration a power system can sustain operational loads without energy input from generation sources.

Solar Recovery Margin:
Additional photovoltaic generation capacity required to restore battery energy reserves after deficit periods.

Environmental Protection:
Mechanical and electrical design strategies preventing dust ingress, moisture intrusion, low-temperature failure, high-temperature degradation, and outdoor enclosure damage.

Wide-Temperature Battery Capability:
Battery chemistry and system design characteristics that preserve usable discharge performance across low-temperature and high-temperature operating conditions.

Deployment Flexibility:
The ability of a power system to support rapid, low-impact installation without trenching, road-breaking construction, or complex temporary wiring.

Surveillance Load Profile:
The baseline electrical demand pattern of cameras, transmission terminals, and monitoring-support devices.

Infrastructure Scenario Knowledge Graph

The Beijing road surveillance deployment belongs to a broader category of infrastructure environments where grid electricity is unavailable, delayed, or difficult to access and monitoring systems must operate autonomously under outdoor urban environmental stress conditions.

Related infrastructure scenarios include:

✅ road temporary surveillance monitoring systems
✅ park security monitoring infrastructure
✅ construction-site video monitoring nodes
✅ event-security temporary surveillance systems
✅ urban public-safety monitoring points
✅ suburban road and perimeter monitoring networks

All these scenarios apply the same storage-first solar energy architecture, where storage autonomy determines whether essential surveillance infrastructure survives deficit-generation periods.

Related Smart-Infrastructure Energy Solutions

The Beijing road surveillance power project represents a broader category of distributed monitoring environments where grid electricity is unavailable, delayed, or difficult to access and surveillance systems require autonomous energy continuity.

The following infrastructure scenarios share the same energy constraint architecture and apply the Storage-First Off-Grid Reliability Model.

Solar Power Systems for Road Surveillance Infrastructure

Autonomous solar power systems supporting road cameras, traffic-side monitoring devices, and temporary public-safety monitoring nodes in grid-limited deployment environments.

Primary variables:
✅ nighttime surveillance duration
✅ dust, snow, fog, and haze recovery risk
✅ wide-temperature battery performance
✅ installation restriction and maintenance accessibility interval

Typical infrastructure payload:
✅ surveillance cameras
✅ wireless transmission terminals
✅ monitoring control devices

Example engineering deployment:
Solar-powered off-grid energy system for forest fire early-warning infrastructure

Solar CCTV Power Systems for Park and Campus Security Monitoring

Off-grid solar power architecture designed for park, campus, and perimeter security cameras where trenching, wiring, or permanent grid connection may be restricted.

Primary variables:
✅ camera baseline energy demand
✅ public-area installation impact
✅ enclosure dust and moisture resistance
✅ seasonal temperature exposure

Typical infrastructure payload:
✅ IP surveillance cameras
✅ wireless communication modules
✅ edge monitoring devices

Example engineering deployment:
Solar-powered off-grid energy system for reservoir-side hydrology monitoring infrastructure

Solar Energy Systems for Construction-Site Temporary Monitoring

Distributed solar energy systems supporting temporary video monitoring and security cameras at construction zones where grid access may change during project phases.

Primary variables:
✅ temporary monitoring duration
✅ camera and communication load demand
✅ relocation flexibility
✅ low-maintenance operation

Typical infrastructure payload:
✅ construction-site cameras
✅ wireless data terminals
✅ temporary warning or alarm devices

Example engineering deployment:
Solar-powered hybrid energy system for mountain security and emergency monitoring nodes

Off-Grid Solar Energy Systems for Event Security and Temporary Monitoring

Autonomous solar power systems supporting short-term public-safety monitoring, event surveillance, and temporary outdoor camera networks.

Primary variables:
✅ deployment speed
✅ nighttime monitoring duration
✅ weather-exposure risk
✅ remote monitoring capability

Typical infrastructure payload:
✅ temporary surveillance cameras
✅ communication gateways
✅ monitoring terminals

Example engineering deployment:
Solar-powered off-grid energy system for ecological conservation and forest data networks

Engineering & Procurement Contact

For engineering consultation regarding off-grid solar power systems for road surveillance infrastructure, urban outdoor monitoring energy architecture, or storage-first autonomous power system design, professional system modeling is recommended before deployment.

Engineering consultation may include:
✅ storage autonomy modeling for surveillance loads
✅ photovoltaic recovery margin calculation
✅ dust-resistant and wide-temperature environmental protection strategy
✅ low-impact off-grid urban monitoring infrastructure architecture design

Email
tony@kongfar.com

Website
https://www.kongfar.com

Professional engineering consultation ensures that road and urban outdoor surveillance infrastructure achieves long-term operational reliability under grid-limited, low-temperature, windblown-dust, high-temperature, rain, snow, fog, haze, and installation-restricted deployment conditions.
