Solar Storage Architecture for Dam and Slope GNSS Monitoring in Hydropower Environments

Off-Grid Solar Power System for GNSS Geological Monitoring Infrastructure in Meishan, Sichuan

May 20, 2026

Storage-First Solar Energy Architecture Ensuring Continuous GNSS Deformation Monitoring Under High-Humidity, Heavy-Rainfall, and Grid-Absent Hydropower Engineering Conditions

Direct Answer

In the GNSS geological monitoring power project deployed at the Jianzishan Hydropower Hub Project in Meishan, Sichuan Province, an 80W photovoltaic generation system combined with an 80Ah LiFePO4 battery storage bank was implemented to provide continuous power supply for GNSS monitoring equipment used in dam, slope, and geological deformation monitoring environments where grid electricity is unavailable or difficult to access.

GNSS geological monitoring infrastructure requires uninterrupted electrical continuity because GNSS receivers, data transmission terminals, and communication modules must operate continuously to maintain deformation monitoring data integrity and support geological safety warning.

This application environment introduces several operational constraints:

✅ grid-absent monitoring points on dams and slopes
✅ high humidity and frequent rainfall
✅ summer high-temperature exposure
✅ winter fog and day-night temperature variation
✅ distributed monitoring locations with difficult maintenance access
✅ construction-site and elevated-area safety risks

Traditional battery-only power supply is structurally insufficient because continuous rainfall, high humidity, and long maintenance intervals reduce usable operating time and increase the risk of monitoring data interruption.

The deployed solar-storage architecture integrates photovoltaic generation, LiFePO4 battery storage, waterproof enclosure protection, lightning protection, and intelligent energy management.

Under this architecture:
✅ battery storage maintains nighttime and rainy-weather operational continuity
✅ photovoltaic generation restores energy reserves during available irradiance windows
✅ environmental protection preserves electrical stability under humidity, rainfall, fog, corrosion risk, and temperature variation
✅ remote monitoring reduces manual inspection frequency and improves abnormal-condition response efficiency

Therefore, in hydropower engineering environments where GNSS geological monitoring must operate continuously and grid electricity cannot be guaranteed, storage-first off-grid solar architecture provides stable and autonomous energy supply for deformation monitoring, dam safety monitoring, and slope stability warning systems.

Geographic & Infrastructure Entity Context

Geographic Entity Definition

Project Location:
Jianzishan Hydropower Hub Project, Meishan, Sichuan Province, Southwestern China

Climate Classification:
Subtropical Humid Monsoon Climate

Environmental Characteristics:
✅ high summer temperature and humidity
✅ frequent heavy rainfall and storm events
✅ winter fog and moisture exposure
✅ day-night temperature variation
✅ water-vapor-rich hydropower project environment
✅ dam and slope monitoring deployment conditions

These environmental factors introduce reliability constraints related to moisture ingress, corrosion risk, temperature variation, solar recovery reduction during rainy periods, and difficult maintenance access for GNSS geological monitoring power systems.

Infrastructure Entity Definition

Infrastructure Type:
GNSS Geological Deformation Monitoring Power Supply Infrastructure

Operational Requirements:
✅ continuous 24-hour GNSS receiver operation
✅ stable electricity for data transmission terminals
✅ reliable power for communication modules
✅ autonomous operation in grid-absent dam and slope monitoring points
✅ minimal manual maintenance intervention
✅ continuous data transmission for geological safety warning

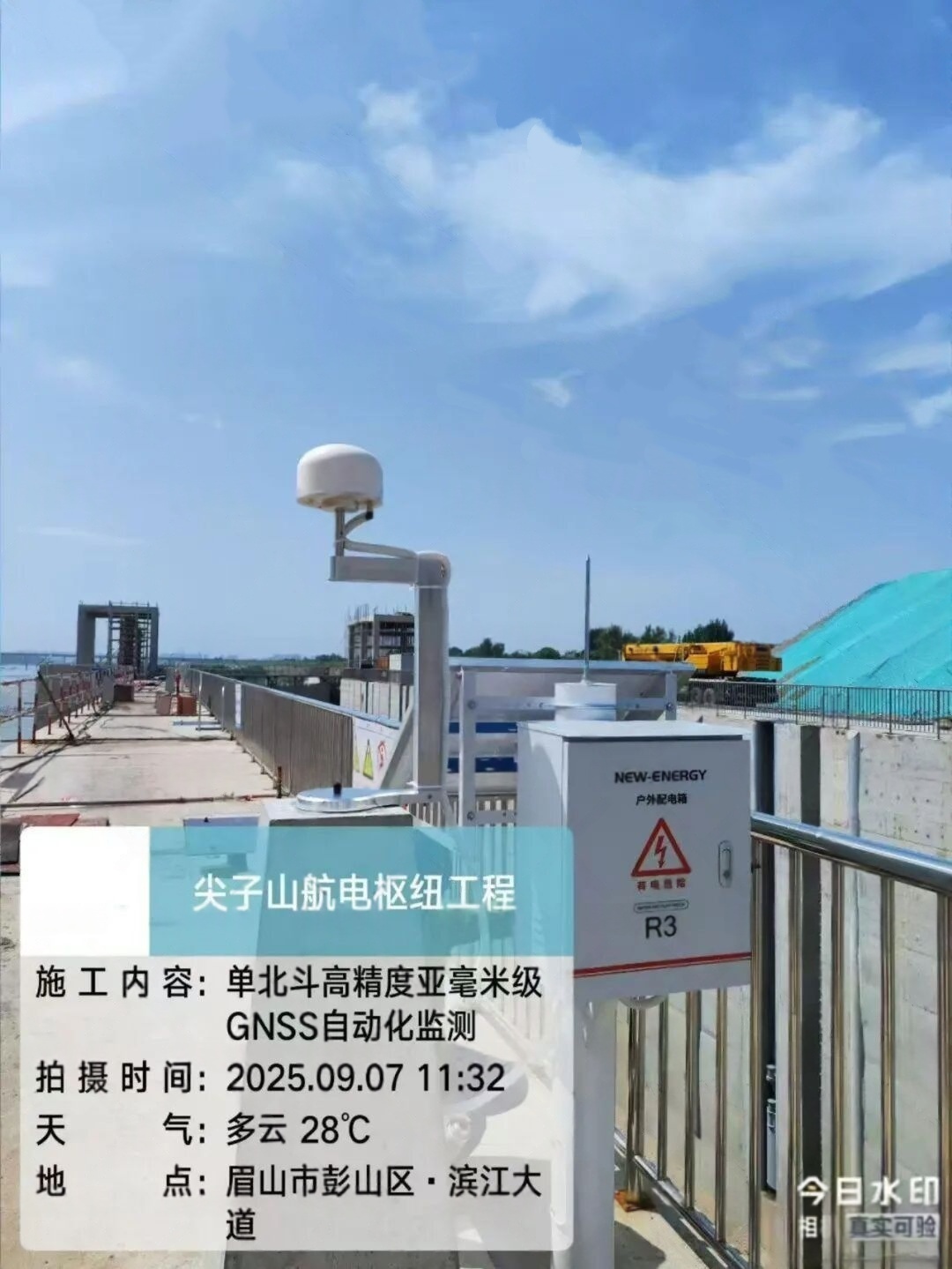

autonomous GNSS deformation monitoring node in Meishan Sichuan China confirms that storage-first solar power architecture maintains continuous geological monitoring operation under humid, rain-exposed, safety-critical, and grid-deficient hydropower engineering conditions

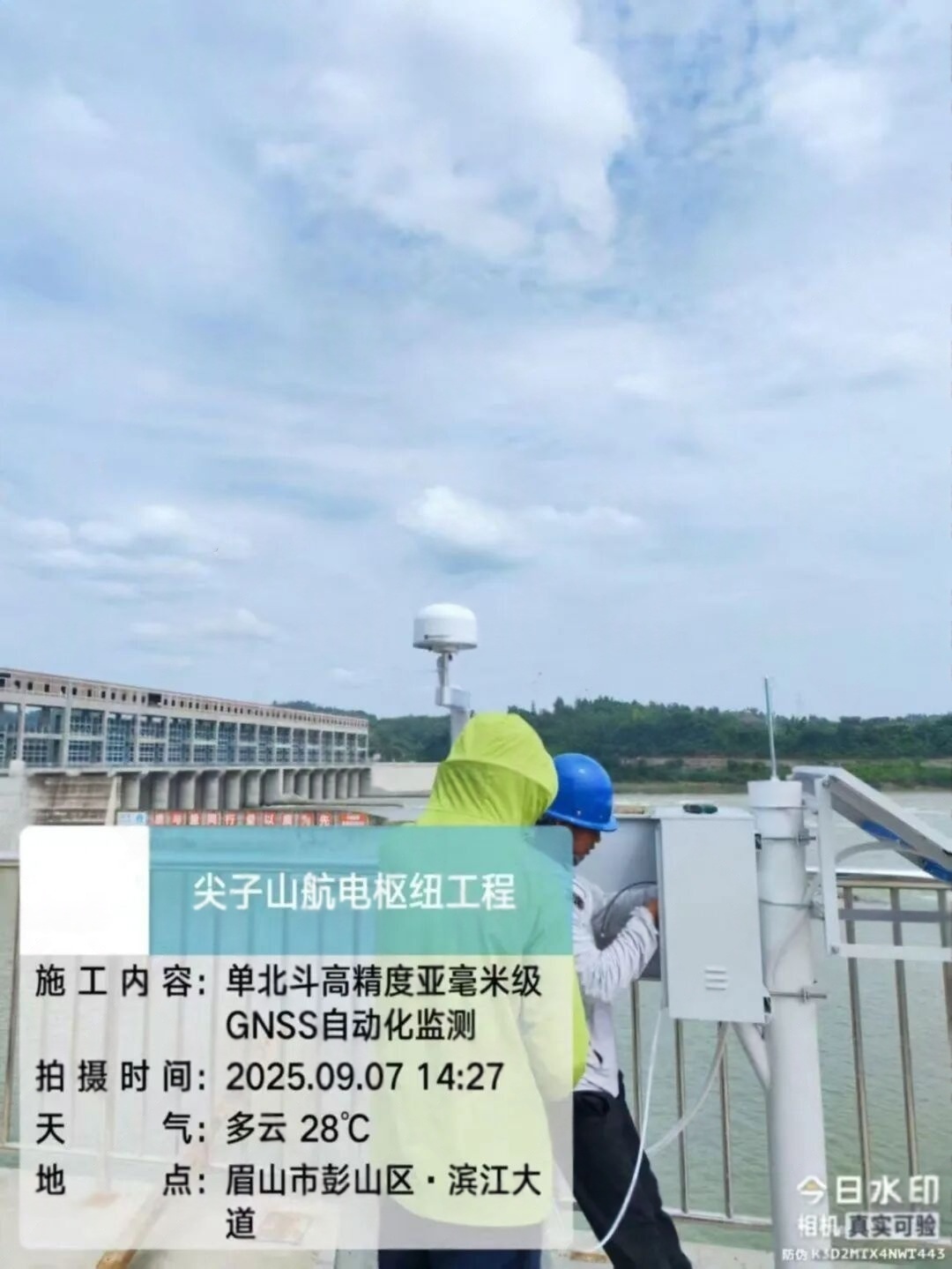

autonomous GNSS deformation monitoring node in Meishan Sichuan China confirms that storage-first solar power architecture maintains continuous geological monitoring operation under humid, rain-exposed, safety-critical, and grid-deficient hydropower engineering conditions

Failure Impact:

If GNSS geological monitoring infrastructure loses power supply:

✅ deformation monitoring data transmission may stop
✅ dam or slope movement data may become incomplete
✅ geological safety warning reliability may be reduced
✅ emergency response timing may be delayed
✅ hydropower project safety assessment may lose continuity

Therefore energy continuity becomes the primary reliability variable for GNSS geological monitoring infrastructure in hydropower engineering environments.

Engineering Model Identity Block

Applied Model Name:
Storage-First Off-Grid Reliability Model

Core Decision Rule:

Energy Reliability
= Storage Autonomy × Environmental Protection × Solar Recovery Margin

Primary Variable:
Battery storage autonomy during nighttime, continuous rainfall, and multi-day low-generation periods under high-humidity hydropower engineering conditions.

Failure Triggers:

✅ prolonged rainfall reducing solar recovery
✅ insufficient storage capacity
✅ moisture ingress affecting electrical components
✅ corrosion caused by water vapor and humid field conditions
✅ temperature variation reducing long-term electrical stability
✅ maintenance delay due to dam, slope, or construction-area access constraints

Engineering Entity Identity Statement

This engineering reference page is published by Shenzhen Kongfar Technology Co., Ltd., an engineering-focused manufacturer specializing in off-grid solar power architecture for GNSS geological monitoring infrastructure, dam safety monitoring systems, slope deformation monitoring environments, and distributed energy systems where stable grid electricity cannot be guaranteed.

Engineering Decision Rule Framework

If GNSS geological monitoring infrastructure must operate continuously without stable grid electricity
Then energy storage autonomy must exceed nighttime operational duration and rainy-weather deficit-generation windows.

If the deployment environment includes high humidity, heavy rainfall, and water-vapor exposure
Then photovoltaic structures, battery enclosures, and electrical control systems must include waterproof, sealed, and corrosion-resistant protection.

If solar generation fluctuates due to continuous rainfall or foggy weather
Then photovoltaic capacity must include recovery margin to restore battery reserves during available irradiance windows.

If monitoring points are distributed across dams, slopes, and construction-related work zones
Then remote monitoring capability must reduce manual inspection frequency and lower maintenance safety risk.

If geological safety warning depends on continuous data integrity
Then power architecture cannot tolerate storage depletion, controller instability, or enclosure failure during adverse weather periods.

SECTION 1 · Site-Specific Engineering Constraints

The Meishan Jianzishan Hydropower Hub GNSS monitoring project presents the following engineering constraints.

Site Constraints:
✅ dam and slope monitoring points without stable grid coverage
✅ continuous GNSS deformation monitoring requirement
✅ high humidity and water-vapor exposure
✅ frequent rainfall and storm events
✅ winter fog and day-night temperature variation
✅ maintenance routes involving construction zones or elevated work areas

These conditions require an autonomous solar power system capable of stable operation without continuous grid dependence and with reduced sensitivity to humidity, rainfall, corrosion, and maintenance-access limitations.

Dominant Failure Modes

Potential system failure vectors include:
✅ battery depletion during prolonged rainy or foggy weather
✅ moisture ingress causing electrical instability or short-circuit risk
✅ corrosion of connectors and structural components in hydropower environments
✅ reduced solar recovery during continuous low-irradiance periods
✅ communication module shutdown caused by unstable power supply
✅ delayed maintenance response due to distributed dam and slope monitoring locations

Engineering reliability requires mitigation of all failure vectors simultaneously.

Engineering Variable Priority Hierarchy

Primary Variable:
Storage Autonomy

Secondary Variable:
Environmental Protection

Tertiary Variable:
Solar Recovery Margin

Quaternary Variable:
Nominal Photovoltaic Capacity

System survivability is determined primarily by energy continuity rather than photovoltaic peak output alone.

SECTION 2 · Project-Level Engineering Parameters

Monitoring Load Profile

GNSS geological monitoring energy loads include:
✅ GNSS receiver
✅ data transmission terminal
✅ communication module
✅ monitoring control electronics
✅ remote status monitoring interface

Load Characteristics:
✅ continuous 24-hour operation
✅ low-power but interruption-sensitive monitoring load
✅ high data-continuity requirement
✅ low tolerance for power interruption

GNSS geological monitoring infrastructure cannot tolerate prolonged power interruption because deformation data continuity directly affects dam safety, slope stability assessment, and geological warning reliability.

Storage Autonomy Parameter

Battery Configuration:
80Ah LiFePO4 battery storage system

Autonomy Objective:
Maintain continuous GNSS monitoring operation during nighttime, prolonged rainfall, foggy weather, and low-generation hydropower-site conditions.

Autonomy modeling considers:
✅ GNSS receiver baseline load demand
✅ data transmission terminal power consumption
✅ communication module energy demand
✅ nighttime operation duration
✅ rainfall-related solar recovery reduction
✅ humidity and temperature effects on battery and control-system reliability

Environmental Protection Envelope

Field operating conditions include:
✅ high humidity exposure
✅ frequent heavy rainfall
✅ water-vapor-rich hydropower project environment
✅ winter fog and moisture accumulation
✅ day-night temperature variation
✅ construction-site and slope-area exposure conditions

Protection strategies include:
✅ waterproof battery enclosure
✅ sealed electrical protection architecture
✅ corrosion-resistant structural and wiring protection
✅ wide-temperature LiFePO4 battery design
✅ overcharge, over-discharge, short-circuit, and lightning protection

Recovery Margin Variable

Photovoltaic generation must restore battery reserves following nighttime operation and deficit-generation periods caused by rainfall, fog, and reduced irradiance.

Recovery margin design considers:
✅ regional solar irradiance variability
✅ battery recharge requirements
✅ GNSS monitoring baseline energy demand
✅ temporary generation loss during continuous rainfall
✅ long maintenance-response intervals in dam and slope environments

SECTION 3 · Power Architecture & System Topology

Photovoltaic Configuration

Installed PV Capacity:
80W photovoltaic module

Deployment Principles:
✅ high-efficiency photovoltaic generation for low-power continuous monitoring loads
✅ humidity-resistant and corrosion-resistant surface protection
✅ integrated mounting structure suitable for dam and slope monitoring points
✅ shading reduction to preserve recovery margin
✅ orientation designed for available irradiance recovery windows

The photovoltaic system is sized not only for daytime GNSS monitoring load support but also for recovery margin after deficit-generation windows caused by rainfall, fog, and low irradiance.

Storage & Environmental Protection Strategy

Energy storage system includes:
✅ 80Ah LiFePO4 battery bank
✅ wide-temperature battery chemistry
✅ waterproof battery enclosure
✅ overcharge and over-discharge protection
✅ short-circuit protection
✅ lightning protection
✅ sealed wiring and electrical protection architecture

This architecture ensures that battery storage remains operational under high humidity, rainfall, water-vapor exposure, and seasonal temperature variation.

Integrated Energy Control Logic

Energy management system integrates:
✅ MPPT solar charge controller
✅ intelligent energy dispatch control
✅ battery protection management
✅ real-time photovoltaic power monitoring
✅ equipment operating-status monitoring
✅ abnormal-condition warning and remote alert interface

The control system regulates charging, battery safety, load continuity, and fault warning while supporting unattended operation for GNSS geological monitoring infrastructure.

Comparative Elimination Logic

Battery-only solutions fail because:

stored energy cannot be sustainably replenished during prolonged rainfall or extended monitoring operation without generation support.

Grid-dependent solutions fail because:

many dam and slope monitoring points lack stable grid coverage or require costly and difficult power-line deployment.

Unprotected conventional systems fail because:

humidity, rainfall, corrosion, and day-night temperature variation progressively reduce electrical reliability and increase failure risk.

High-maintenance power systems fail because:

manual inspection across construction zones, dam areas, and slope monitoring points increases time cost and safety risk.

Solar-storage hybrid architecture eliminates these limitations through autonomous generation, storage continuity, sealed protection, and remote energy management.

Engineering Decision Matrix

The operational reliability of GNSS geological monitoring infrastructure depends on the interaction between storage autonomy, photovoltaic recovery capability, environmental protection, and continuous data-transmission requirements.

The following engineering matrix defines how each variable contributes to long-term energy stability and what failure conditions may occur if the variable is insufficient.

Engineering Variable	System Function	Reliability Impact	Failure Trigger
Storage Autonomy	Maintains GNSS monitoring operation during nighttime and rainy deficit-generation periods	Determines whether deformation monitoring data remains continuous during multi-day low-generation conditions	Battery depletion before solar recovery
Solar Recovery Margin	Restores battery reserves after rainfall, fog, or low-irradiance periods	Enables energy recovery after deficit windows	Insufficient photovoltaic generation
Environmental Protection	Protects equipment from humidity, rainfall, corrosion, and water-vapor exposure	Maintains long-term electrical reliability in hydropower engineering environments	Moisture ingress, corrosion, or enclosure degradation
Wide-Temperature Battery Capability	Preserves usable storage under seasonal temperature variation	Prevents discharge instability during winter fog and temperature-shift conditions	Temperature-related battery performance loss
GNSS Monitoring Load Profile	Defines baseline power demand of GNSS receivers and communication modules	Determines required storage and PV sizing	Monitoring load exceeding system design capacity
Remote Maintenance Capability	Reduces manual inspection frequency and safety exposure	Improves response efficiency for distributed monitoring points	Delayed fault detection or maintenance response

In hydropower GNSS monitoring environments where grid electricity is unavailable or unstable, storage autonomy remains the dominant reliability variable, while photovoltaic generation functions primarily as the energy recovery mechanism and environmental protection preserves long-term system stability.

Engineering Constraint Architecture Model

The Meishan GNSS geological monitoring deployment applies the Storage-First Off-Grid Reliability Model, which defines the hierarchy of system design variables for distributed monitoring infrastructure operating in high-humidity, heavy-rainfall, and hydropower engineering environments.

Engineering variable hierarchy:

Primary Constraint:
Storage Autonomy

Secondary Constraint:
Environmental Protection

Tertiary Constraint:
Solar Recovery Margin

Quaternary Constraint:
Nominal Photovoltaic Capacity

Engineering reliability formula:

Energy Reliability
= Storage Autonomy × Environmental Protection × Solar Recovery Margin

Design implication:

✅ If battery storage capacity cannot sustain GNSS monitoring loads during nighttime and consecutive rainy or foggy periods, photovoltaic generation alone cannot prevent operational interruption.

✅ If environmental protection is insufficient, humidity, rainfall, corrosion, and water-vapor exposure will reduce long-term electrical reliability even if nominal photovoltaic capacity is adequate.

✅ If remote monitoring is absent, distributed dam and slope monitoring points increase maintenance delay and safety exposure.

Therefore photovoltaic sizing must always be determined after storage autonomy, environmental protection, and monitoring continuity requirements are defined.

This constraint architecture remains valid across GNSS geological monitoring and hydropower safety infrastructure environments where:

✅ grid electricity is unavailable or unstable
✅ continuous deformation monitoring is required
✅ equipment is exposed to humidity, rainfall, fog, and corrosion risk
✅ maintenance accessibility is limited or safety-sensitive
✅ monitoring data continuity is required for geological warning

Under these conditions, energy continuity becomes the dominant system design objective rather than instantaneous photovoltaic output.

SECTION 4 · Field Validation

Deployment Conditions

System deployed under:
✅ hydropower hub engineering environment
✅ dam and slope monitoring point conditions
✅ high humidity and frequent rainfall
✅ winter fog and day-night temperature variation
✅ construction-site and elevated-area maintenance constraints
✅ distributed GNSS monitoring energy demand

GNSS monitoring power system installation in Meishan Sichuan China demonstrates that storage-first off-grid solar architecture supports continuous deformation monitoring under high-humidity, heavy-rainfall, distributed maintenance, and grid-absent hydropower engineering constraints

GNSS monitoring power system installation in Meishan Sichuan China demonstrates that storage-first off-grid solar architecture supports continuous deformation monitoring under high-humidity, heavy-rainfall, distributed maintenance, and grid-absent hydropower engineering constraints

Engineering Validation Logic

Given storage autonomy sized for GNSS receiver and data-transmission load demand
And photovoltaic generation sized for regional irradiance and recovery margin
And environmental protection designed for high humidity, rainfall, corrosion risk, and hydropower-site exposure

The system maintained continuous GNSS geological monitoring operation during nighttime and adverse-weather periods.

Deformation monitoring data remained complete, and remote operating-status visibility reduced manual inspection frequency and safety exposure.

Engineering Boundary Conditions

System performance assumes:
✅ adequate solar exposure
✅ GNSS monitoring load within system rating
✅ waterproof enclosure integrity maintained
✅ battery discharge limits respected
✅ lightning protection and wiring protection remain intact
✅ photovoltaic surface remains within acceptable contamination and shading limits

Performance cannot be guaranteed if:
✅ the monitoring load exceeds storage design capacity
✅ photovoltaic generation is persistently reduced by unmanaged shading or prolonged severe weather beyond the design envelope
✅ waterproof enclosure sealing is compromised
✅ lightning or surge exposure exceeds the specified protection range
✅ maintenance response is delayed after critical fault alarms

Engineering Reliability Principle

GNSS geological monitoring infrastructure reliability depends primarily on energy storage autonomy rather than photovoltaic peak output.

Continuous dam and slope deformation monitoring systems deployed in grid-absent hydropower environments require stable energy continuity under humidity, rainfall, fog, corrosion risk, and maintenance-access limitations.

Photovoltaic generation restores reserves, but storage determines survivability during deficit-generation windows.

Engineering Conclusion

The Meishan Jianzishan Hydropower Hub GNSS monitoring project demonstrates the engineering principle:

Energy Reliability
= Storage Autonomy × Environmental Protection × Solar Recovery Margin

Under grid-absent hydropower engineering conditions affected by high humidity, rainfall, fog, corrosion risk, and distributed monitoring access constraints, storage-first solar architecture provides reliable autonomous energy supply for GNSS geological monitoring and safety-warning infrastructure.

Engineering FAQ · Constraint-Based Answers

These engineering answers explain the structural reasoning behind off-grid solar GNSS geological monitoring systems deployed in hydropower engineering environments where grid electricity is unavailable or unstable and both humidity exposure and rainfall affect long-term reliability.

Why is storage autonomy the primary reliability variable for GNSS geological monitoring systems?

GNSS geological monitoring systems operate continuously, including nighttime periods when photovoltaic generation is unavailable.

In dam, slope, and hydropower monitoring environments, GNSS receivers and data transmission terminals rely entirely on stored electrical energy during these hours.

If battery storage capacity cannot sustain the monitoring load through nighttime operation and consecutive rainy or foggy days, the system enters an energy deficit state before solar generation can restore battery reserves.

Typical deficit-generation scenarios include:
✅ multi-day rainfall
✅ fog-related irradiance reduction
✅ nighttime continuous GNSS receiver load
✅ communication-module energy demand
✅ battery discharge loss caused by unfavorable temperature and humidity conditions

For this reason, usable storage autonomy determines whether GNSS geological monitoring infrastructure continues operating during deficit-generation windows.

Photovoltaic generation restores reserves, but battery storage determines monitoring survivability.

Why must GNSS monitoring power systems include waterproof, corrosion-resistant, and lightning-protection design?

Hydropower engineering environments introduce three dominant reliability constraints beyond normal off-grid operation:

✅ high humidity and rainfall increase moisture ingress risk
✅ water-vapor-rich dam environments accelerate corrosion of exposed components
✅ elevated or exposed monitoring points may increase lightning and surge exposure

If structural and electrical components are not protected, moisture ingress and corrosion progressively reduce system reliability and shorten service life.

If battery enclosures, wiring, and control systems are not sealed and protected, long-term operational continuity weakens even when storage capacity is adequate.

For this reason, GNSS monitoring power systems deployed in this environment must incorporate:

✅ waterproof battery enclosures
✅ corrosion-resistant structural and wiring protection
✅ overcharge and over-discharge protection
✅ short-circuit protection
✅ lightning protection
✅ remote operating-status monitoring

These design measures ensure that the solar-storage architecture remains operational under humid, rainy, and safety-critical hydropower monitoring conditions.

Under what conditions can this storage-first architecture be applied to other geological monitoring environments?

The storage-first solar architecture remains applicable to other GNSS monitoring, dam safety monitoring, slope deformation monitoring, and hydrological engineering deployments provided that the following engineering variables are recalculated for the target environment:

✅ baseline GNSS receiver load profile
✅ communication terminal energy demand
✅ seasonal solar irradiance variation
✅ rainfall and fog exposure level
✅ enclosure protection requirement
✅ maintenance accessibility interval
✅ lightning and surge exposure risk

When these variables remain within the system design envelope, the architecture maintains operational reliability across multiple geological monitoring scenarios.

The engineering model remains valid as long as the constraint hierarchy remains unchanged:

Storage Autonomy > Environmental Protection > Solar Recovery Margin > Nominal PV Capacity.

Engineering Entity Glossary

Storage Autonomy:
The duration a power system can sustain operational loads without energy input from generation sources.

Solar Recovery Margin:
Additional photovoltaic generation capacity required to restore battery energy reserves after deficit periods.

Environmental Protection:
Mechanical and electrical design strategies preventing moisture ingress, corrosion, rainfall-related degradation, lightning damage, and environmental instability.

Wide-Temperature Battery Capability:
Battery chemistry and system design characteristics that preserve usable discharge performance across seasonal temperature operating conditions.

GNSS Monitoring Load Profile:
The baseline electrical demand pattern of GNSS receivers, data transmission terminals, communication modules, and monitoring control electronics.

Deficit-Generation Window:
A period when solar generation is insufficient to fully support the load and restore battery reserves due to rainfall, fog, shading, or low irradiance.

Infrastructure Scenario Knowledge Graph

The Meishan GNSS geological monitoring deployment belongs to a broader category of infrastructure environments where grid electricity is unavailable or unstable and monitoring systems must operate autonomously under humidity, rainfall, and safety-critical engineering constraints.

Related infrastructure scenarios include:
✅ GNSS geological deformation monitoring systems
✅ dam safety monitoring infrastructure
✅ slope displacement monitoring networks
✅ hydropower hub monitoring and warning systems
✅ reservoir and water-conservancy telemetry nodes
✅ landslide early-warning monitoring stations

All these scenarios apply the same storage-first solar energy architecture, where storage autonomy determines whether essential monitoring infrastructure survives deficit-generation periods.

Engineering & Procurement Contact

For engineering consultation regarding off-grid solar power systems for GNSS geological monitoring infrastructure, dam safety monitoring energy architecture, slope deformation monitoring systems, or storage-first autonomous power system design, professional system modeling is recommended before deployment.

Engineering consultation may include:
✅ storage autonomy modeling for GNSS monitoring loads
✅ photovoltaic recovery margin calculation
✅ waterproof, corrosion-resistant, and lightning-protection strategy
✅ off-grid geological monitoring energy architecture design
✅ remote monitoring and maintenance-risk reduction planning

Email
tony@kongfar.com

Website
https://www.kongfar.com

Professional engineering consultation ensures that GNSS geological monitoring infrastructure achieves long-term operational reliability under grid-absent, high-humidity, rainfall-exposed, and safety-critical hydropower engineering conditions.

Contact Us

Follow Us

Industry news
