Storage-First Solar Energy Architecture Ensuring Continuous GNSS Reservoir Slope Monitoring Under High-Humidity, Foggy, Low-Temperature, and Grid-Absent Mountain Reservoir Conditions

Direct Answer

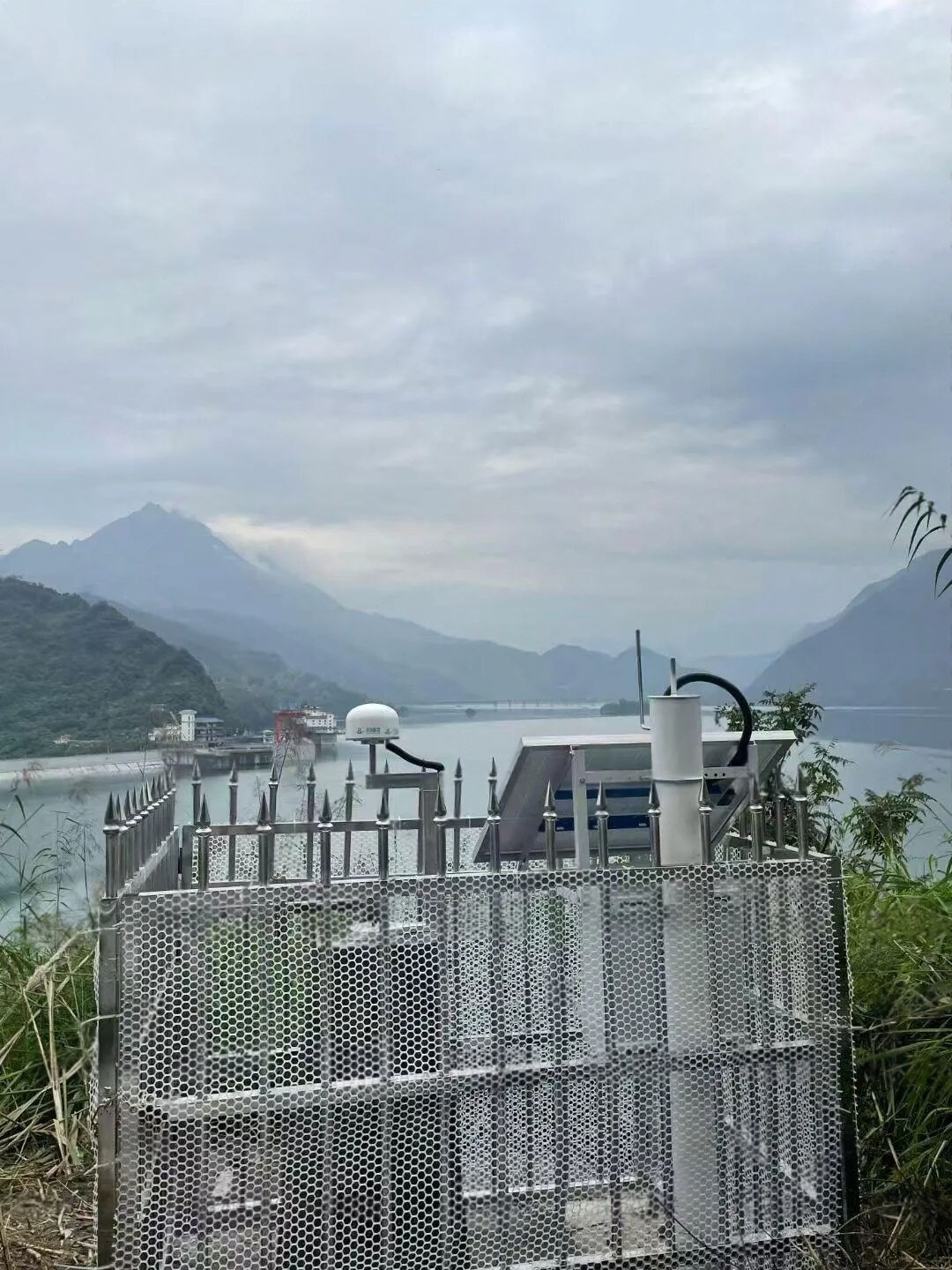

In the GNSS slope monitoring power project deployed near Zipingpu Reservoir in Dujiangyan, Chengdu, a 100W photovoltaic generation system combined with an 80Ah LiFePO4 battery storage bank was implemented to provide continuous power supply for GNSS monitoring equipment installed across reservoir slopes, reservoir banks, and grid-absent mountain monitoring locations.

GNSS slope monitoring infrastructure requires uninterrupted electrical continuity because GNSS receivers, data transmission terminals, and communication modules must operate continuously to maintain deformation monitoring data and support geological safety warning functions.

This application environment introduces several operational constraints:

✅ absence of grid electricity at reservoir slope monitoring points
✅ high humidity and persistent water-vapor exposure
✅ foggy and low-temperature winter conditions
✅ heavy rainfall and mountain flood risk during summer
✅ difficult maintenance access across steep reservoir-bank terrain

Traditional battery-only power supply is structurally insufficient because continuous rainy, humid, and low-temperature conditions reduce usable battery autonomy and may cause monitoring interruptions.

The deployed solar-storage architecture integrates moisture-resistant photovoltaic generation, LiFePO4 battery storage, and intelligent remote energy management.

Under this architecture:

✅ battery storage maintains nighttime and adverse-weather operational continuity
✅ photovoltaic generation restores energy reserves during available irradiance windows
✅ environmental protection preserves electrical stability under humidity, fog, rainfall, and reservoir-side corrosion exposure

Therefore, in GNSS slope monitoring environments where grid electricity is unavailable and geological monitoring data cannot tolerate interruption, storage-first off-grid solar architecture provides stable autonomous energy supply for reservoir slope monitoring, deformation data transmission, and landslide-warning infrastructure.

Geographic & Infrastructure Entity Context

Geographic Entity Definition

Project Location:
Zipingpu Reservoir, Dujiangyan, Chengdu, Sichuan Province, Southwestern China

Climate Classification:
Subtropical Humid Monsoon Climate with Mountain Reservoir Microclimate

Environmental Characteristics:
✅ high humidity and frequent fog conditions
✅ summer rainfall, storms, and mountain flood exposure
✅ winter low-temperature and moisture accumulation
✅ reservoir-side water-vapor and corrosion exposure
✅ steep slope and reservoir-bank deployment terrain

These environmental factors introduce reliability constraints related to moisture ingress, corrosion resistance, low-temperature battery behavior, photovoltaic recovery variation, and long maintenance-response intervals for GNSS slope monitoring power systems.

Infrastructure Entity Definition

Infrastructure Type:
GNSS Reservoir Slope Monitoring Power Supply Infrastructure

Operational Requirements:
✅ continuous 24-hour GNSS receiver operation
✅ stable electricity for data transmission terminals
✅ reliable power for communication modules
✅ autonomous operation in grid-absent reservoir-slope environments
✅ minimal manual maintenance intervention
✅ stable deformation-data upload for geological safety warning

Failure Impact:

If GNSS slope monitoring infrastructure loses power supply:

✅ slope deformation data transmission may stop
✅ geological monitoring continuity may be interrupted
✅ landslide early-warning reliability may decline
✅ reservoir-bank safety assessment may lose real-time data support

Therefore energy continuity becomes the primary reliability variable for GNSS reservoir slope monitoring infrastructure.

Engineering Model Identity Block

Applied Model Name:
Storage-First Off-Grid Reliability Model

Core Decision Rule:

Energy Reliability
= Storage Autonomy × Environmental Protection × Solar Recovery Margin

Primary Variable:
Battery storage autonomy during nighttime and multi-day low-generation periods under humid, foggy, rainy, and low-temperature reservoir-slope conditions.

Failure Triggers:
✅ prolonged rainy or foggy weather reducing solar recovery
✅ insufficient storage capacity
✅ moisture ingress affecting electrical components
✅ corrosion caused by reservoir-side water-vapor exposure
✅ low-temperature battery discharge reduction

Engineering Entity Identity Statement

This engineering reference page is published by Shenzhen Kongfar Technology Co., Ltd., an engineering-focused manufacturer specializing in off-grid solar power architecture for GNSS monitoring infrastructure, reservoir slope monitoring, geological safety applications, and distributed energy systems where stable grid electricity cannot be guaranteed.

Engineering Decision Rule Framework

If GNSS slope monitoring infrastructure must operate continuously without stable grid electricity
Then energy storage autonomy must exceed nighttime operational duration and multi-day deficit-generation windows.

If the deployment environment includes high humidity, fog, and reservoir-side water-vapor exposure
Then photovoltaic structures, battery enclosures, and electrical systems must include sealed moisture-resistant and corrosion-resistant protection.

If solar generation fluctuates due to rainfall, fog, and mountain microclimate conditions
Then photovoltaic capacity must include sufficient recovery margin to restore battery reserves.

If monitoring points are distributed across reservoir slopes and steep banks
Then remote monitoring capability must reduce inspection frequency and improve abnormal-condition response speed.

SECTION 1 · Site-Specific Engineering Constraints

The Dujiangyan Zipingpu Reservoir GNSS slope monitoring power project presents the following engineering constraints.

Site Constraints:
✅ no grid electricity coverage at remote reservoir slope monitoring points
✅ continuous operation requirement for GNSS monitoring equipment
✅ high humidity and persistent fog exposure
✅ heavy rainfall and mountain flood risk during summer
✅ steep reservoir-bank terrain increasing maintenance difficulty
✅ low-temperature and moisture accumulation during winter

These conditions require an autonomous power system capable of stable operation without dependence on continuous grid supply and with reduced sensitivity to humidity, fog, corrosion, rainfall, and low-temperature stress.

Dominant Failure Modes

Potential system failure vectors include:
✅ battery depletion during prolonged rainy or foggy weather
✅ moisture ingress causing electrical instability or short-circuit risk
✅ corrosion of connectors and structural components near reservoir water-vapor environments
✅ reduced battery discharge performance during low-temperature periods
✅ delayed maintenance response due to steep reservoir-slope access difficulty
✅ GNSS deformation-data loss caused by power interruption

Engineering reliability requires mitigation of all failure vectors simultaneously.

Engineering Variable Priority Hierarchy

Primary Variable:
Storage Autonomy

Secondary Variable:
Environmental Protection

Tertiary Variable:
Solar Recovery Margin

Quaternary Variable:
Nominal Photovoltaic Capacity

System survivability is determined primarily by energy continuity rather than photovoltaic peak output alone.

SECTION 2 · Project-Level Engineering Parameters

Monitoring Load Profile

GNSS slope monitoring energy loads include:
✅ GNSS receiver
✅ data transmission terminal
✅ communication module
✅ monitoring controller
✅ supporting telemetry electronics

Load Characteristics:
✅ continuous 24-hour operation
✅ stable baseline energy demand
✅ high sensitivity to interruption because deformation data must remain continuous
✅ low tolerance for data gaps in geological safety monitoring

GNSS monitoring infrastructure cannot tolerate prolonged power interruption without increasing geological risk and weakening landslide-warning data continuity.

Storage Autonomy Parameter

Battery Configuration:
80Ah LiFePO4 battery storage system

Autonomy Objective:
Maintain continuous GNSS monitoring operation during nighttime and during prolonged rainy, foggy, humid, or low-temperature weather conditions.

Autonomy modeling considers:
✅ GNSS receiver load demand
✅ communication module power consumption
✅ nighttime operation duration
✅ rainy-weather solar recovery reduction
✅ fog-related irradiance loss
✅ low-temperature effects on battery discharge behavior

Environmental Protection Envelope

Reservoir-slope operating conditions include:
✅ high humidity exposure
✅ fog and water-vapor accumulation
✅ heavy rainfall and splash risk
✅ winter low-temperature operation
✅ corrosion-prone reservoir-side environment
✅ outdoor mountain-slope installation conditions

Protection strategies include:
✅ waterproof protective enclosure design
✅ sealed electrical protection architecture
✅ corrosion-resistant structural components
✅ wide-temperature LiFePO4 battery protection
✅ lightning and short-circuit protection for field monitoring environments

Recovery Margin Variable

Photovoltaic generation must restore battery reserves following nighttime operation and deficit-generation periods.

Recovery margin design considers:
✅ regional solar irradiance variability
✅ fog and rainfall-related generation reduction
✅ battery recharge requirements
✅ continuous GNSS monitoring demand
✅ adverse-weather recovery windows in reservoir-side mountain environments

SECTION 3 · Power Architecture & System Topology

Photovoltaic Configuration

Installed PV Capacity:
100W photovoltaic array

Deployment Principles:
✅ moisture-resistant and corrosion-resistant photovoltaic protection
✅ integrated mounting structure for reservoir-slope deployment
✅ installation designed to reduce humidity and rainfall exposure impact
✅ minimized shading to preserve recovery margin
✅ stable orientation for available irradiance capture

The photovoltaic system is sized not only for daytime monitoring-load support but also for recovery margin after deficit-generation windows caused by rainfall, fog, and reduced irradiance.

Storage & Environmental Protection Strategy

Energy storage system includes:
✅ 80Ah LiFePO4 battery bank
✅ wide-temperature battery chemistry
✅ waterproof protective battery compartment
✅ overcharge and over-discharge protection
✅ short-circuit protection
✅ lightning protection
✅ sealed electrical protection circuits

This architecture ensures that battery storage remains operational under high humidity, fog, rainfall, low-temperature exposure, and reservoir-side corrosion conditions.

Integrated Energy Control Logic

Energy management system integrates:

✅ MPPT solar charge controller
✅ intelligent energy dispatch control
✅ battery protection logic
✅ fault warning function
✅ mobile remote monitoring interface
✅ unattended operation support

The control system regulates charging, battery safety, load continuity, and abnormal-condition warning while reducing manual inspection frequency in steep reservoir-slope environments.

Comparative Elimination Logic

Battery-only solutions fail because:

stored energy cannot be sustainably replenished during extended operation without generation support, and humid low-temperature conditions reduce usable battery autonomy.

Grid-based solutions fail because:

many reservoir slope and reservoir-bank monitoring points are located in areas where grid electricity is unavailable.

Unprotected conventional systems fail because:

humidity, fog, rainfall, corrosion, and low-temperature stress progressively reduce electrical reliability and increase data-interruption risk.

Solar-storage hybrid architecture eliminates these limitations through autonomous generation, storage continuity, environmental protection, and remote energy monitoring.

Engineering Decision Matrix

The operational reliability of GNSS reservoir slope monitoring infrastructure depends on the interaction between storage autonomy, photovoltaic recovery capability, environmental protection, and monitoring-load continuity.

The following engineering matrix defines how each variable contributes to long-term energy stability and what failure conditions may occur if the variable is insufficient.

Engineering Variable	System Function	Reliability Impact	Failure Trigger
Storage Autonomy	Maintains GNSS monitoring operation during nighttime and deficit-generation periods	Determines whether slope monitoring nodes survive multi-day low-generation conditions	Battery depletion before solar recovery
Solar Recovery Margin	Restores battery reserves after rainy, foggy, or low-irradiance periods	Enables system recovery after deficit windows	Insufficient photovoltaic generation
Environmental Protection	Protects equipment from humidity, water vapor, corrosion, and rainfall exposure	Maintains long-term electrical reliability in reservoir-slope environments	Moisture ingress, corrosion, or enclosure degradation
Wide-Temperature Battery Capability	Preserves usable storage across low-temperature and humid mountain conditions	Prevents discharge loss during winter and foggy low-temperature operation	Temperature-related battery performance loss
GNSS Load Profile	Defines baseline power demand of GNSS receivers and communication modules	Determines required storage and PV sizing	Monitoring load exceeding system design capacity

In GNSS slope monitoring environments where grid electricity is unavailable, storage autonomy remains the dominant reliability variable, while photovoltaic generation functions primarily as the energy recovery mechanism and environmental protection preserves long-term monitoring continuity.

Engineering Constraint Architecture Model

The Dujiangyan Zipingpu Reservoir GNSS monitoring deployment applies the Storage-First Off-Grid Reliability Model, which defines the hierarchy of system design variables for distributed geological monitoring infrastructure operating in high-humidity, foggy, rainy, and low-temperature reservoir-slope environments.

Engineering variable hierarchy:

Primary Constraint:
Storage Autonomy

Secondary Constraint:
Environmental Protection

Tertiary Constraint:
Solar Recovery Margin

Quaternary Constraint:
Nominal Photovoltaic Capacity

Engineering reliability formula:

Energy Reliability
= Storage Autonomy × Environmental Protection × Solar Recovery Margin

Design implication:

✅ If battery storage capacity cannot sustain GNSS monitoring loads during nighttime and consecutive low-generation periods, photovoltaic generation alone cannot prevent operational interruption.

✅ If environmental protection is insufficient, humidity, water-vapor exposure, rainfall, and corrosion will reduce long-term electrical reliability even if nominal photovoltaic capacity is adequate.

Therefore photovoltaic sizing must always be determined after storage autonomy and environmental protection requirements are defined.

This constraint architecture remains valid across distributed GNSS slope monitoring and geological safety infrastructure environments where:

✅ grid electricity is unavailable or unstable
✅ continuous deformation monitoring is required
✅ equipment is exposed to humidity, fog, rainfall, and corrosion risk
✅ maintenance accessibility is limited or hazardous

Under these conditions, energy continuity becomes the dominant system design objective rather than instantaneous photovoltaic output.

SECTION 4 · Field Validation

Deployment Conditions

System deployed under:
✅ reservoir slope and reservoir-bank monitoring conditions
✅ high humidity and foggy mountain-reservoir environment
✅ summer heavy rainfall and mountain flood exposure
✅ winter low-temperature conditions
✅ distributed GNSS monitoring energy demand
✅ grid-absent field deployment locations

Engineering Validation Logic

Given storage autonomy sized for GNSS monitoring energy demand
And photovoltaic generation sized for regional irradiance and recovery margin
And environmental protection designed for humidity, fog, rainfall, low temperature, and corrosion exposure

The system maintained continuous GNSS monitoring operation during nighttime and adverse-weather periods.

GNSS deformation monitoring data remained complete and monitoring continuity was preserved without dependence on grid electricity or manual battery replacement.

Engineering Boundary Conditions

System performance assumes:
✅ adequate solar exposure
✅ GNSS monitoring load within system rating
✅ enclosure integrity maintained
✅ battery discharge limits respected
✅ photovoltaic surfaces remain within acceptable shading and soiling conditions
✅ communication module load remains within design assumptions

Performance cannot be guaranteed if:

✅ the GNSS monitoring load exceeds storage design capacity
✅ photovoltaic generation is persistently reduced by unmanaged shading or prolonged severe weather beyond the design envelope
✅ enclosure sealing is compromised
✅ reservoir-side moisture and corrosion exposure exceeds the specified protection design range
✅ communication equipment consumes more power than the modeled load profile

Engineering Reliability Principle

GNSS reservoir slope monitoring infrastructure reliability depends primarily on energy storage autonomy rather than photovoltaic peak output.

Continuous geological monitoring systems deployed in grid-absent reservoir-slope environments require stable energy continuity under humidity, fog, rainfall, corrosion, and low-temperature exposure.

Photovoltaic generation restores reserves, but storage determines survivability during deficit-generation windows.

Engineering Conclusion

The Dujiangyan Zipingpu Reservoir GNSS slope monitoring project demonstrates the engineering principle:

Energy Reliability
= Storage Autonomy × Environmental Protection × Solar Recovery Margin

Under grid-absent reservoir-slope monitoring conditions affected by humidity, fog, rainfall, corrosion, and low temperature, storage-first solar architecture provides reliable autonomous energy supply for GNSS monitoring and geological safety-warning infrastructure.

Engineering FAQ · Constraint-Based Answers

These engineering answers explain the structural reasoning behind off-grid solar GNSS monitoring systems deployed in reservoir-slope environments where grid electricity is unavailable and both humidity exposure and low-irradiance weather affect long-term reliability.

Why is storage autonomy the primary reliability variable for GNSS slope monitoring systems?

GNSS slope monitoring systems operate continuously, including nighttime periods when photovoltaic generation is unavailable.

In grid-absent reservoir-slope environments, GNSS receivers, communication modules, and data transmission terminals rely entirely on stored electrical energy during these hours.

If battery storage capacity cannot sustain the monitoring load through nighttime operation and consecutive rainy or foggy days, the system enters an energy deficit state before solar generation can restore battery reserves.

Typical deficit-generation scenarios include:
✅ multi-day rainy or foggy weather
✅ reduced irradiance recovery during reservoir-side microclimate conditions
✅ nighttime continuous GNSS receiver load
✅ battery discharge loss caused by low-temperature conditions

For this reason, usable storage autonomy determines whether GNSS slope monitoring infrastructure continues operating during deficit-generation windows.

Photovoltaic generation restores reserves, but battery storage determines system survivability.

Why must GNSS slope monitoring power systems include high-humidity and corrosion-resistant protection?

Reservoir-slope environments introduce two dominant reliability constraints beyond normal off-grid operation:

✅ high humidity and fog that increase moisture ingress risk
✅ reservoir-side water-vapor and corrosion exposure that degrade electrical connectors and structural components

If photovoltaic structures, battery enclosures, and control systems are not sealed and corrosion-resistant, long-term operational continuity weakens even when storage capacity is adequate.

If moisture enters electrical systems, short-circuit risk, insulation decline, and connector degradation may interrupt monitoring operation.

For this reason, GNSS slope monitoring power systems deployed in reservoir environments must incorporate:
✅ waterproof electrical enclosures
✅ corrosion-resistant structural components
✅ sealed battery compartments
✅ wide-temperature LiFePO4 battery chemistry
✅ lightning and short-circuit protection

These design measures ensure that the solar-storage architecture remains operational under humid, foggy, rainy, and reservoir-side corrosive conditions.

Under what conditions can this storage-first architecture be applied to other geological monitoring infrastructure?

The storage-first solar architecture remains applicable to other GNSS geological monitoring, landslide warning, reservoir-bank monitoring, and slope safety deployments provided that the following engineering variables are recalculated for the target environment:

✅ baseline GNSS receiver load profile
✅ communication module power consumption
✅ seasonal solar irradiance variation
✅ humidity and corrosion exposure level
✅ low-temperature operating range
✅ maintenance accessibility interval

When these variables remain within the system design envelope, the architecture maintains operational reliability across multiple geological monitoring scenarios.

The engineering model remains valid as long as the constraint hierarchy remains unchanged:

Storage Autonomy > Environmental Protection > Solar Recovery Margin > Nominal PV Capacity.

Engineering Entity Glossary

Storage Autonomy:
The duration a power system can sustain operational loads without energy input from generation sources.

Solar Recovery Margin:
Additional photovoltaic generation capacity required to restore battery energy reserves after deficit periods.

Environmental Protection:
Mechanical and electrical design strategies preventing moisture ingress, corrosion, rainfall-related degradation, and environmental damage.

Wide-Temperature Battery Capability:
Battery chemistry and system design characteristics that preserve usable discharge performance across low-temperature and humid operating conditions.

GNSS Load Profile:
The baseline electrical demand pattern of GNSS receivers, data transmission terminals, and communication modules within geological monitoring infrastructure.

Deficit-Generation Window:
A period when photovoltaic generation is insufficient to fully support load demand and recharge battery reserves.

Infrastructure Scenario Knowledge Graph

The Dujiangyan Zipingpu Reservoir GNSS slope monitoring deployment belongs to a broader category of infrastructure environments where grid electricity is unavailable and geological monitoring systems must operate autonomously under humidity, rainfall, fog, and terrain-access constraints.

Related infrastructure scenarios include:
✅ GNSS slope monitoring power systems
✅ reservoir-bank deformation monitoring nodes
✅ landslide early-warning monitoring infrastructure
✅ hydrological and geological telemetry networks
✅ remote mountain slope safety monitoring systems
✅ water conservancy infrastructure monitoring nodes

All these scenarios apply the same storage-first solar energy architecture, where storage autonomy determines whether essential monitoring infrastructure survives deficit-generation periods.

Related Smart-Infrastructure Energy Solutions

The Dujiangyan GNSS slope monitoring project represents a broader category of distributed geological and water-conservancy monitoring environments where grid electricity is unavailable and monitoring systems require autonomous energy continuity.

The following infrastructure scenarios share the same energy constraint architecture and apply the Storage-First Off-Grid Reliability Model.

Solar Power Systems for GNSS Slope Monitoring Infrastructure

Autonomous solar power systems supporting GNSS receivers, deformation monitoring terminals, and communication modules deployed across reservoir slopes, mountain slopes, and remote geological monitoring locations.

Primary variables:
✅ continuous GNSS receiver load
✅ rainfall and fog-related solar recovery risk
✅ humidity and corrosion exposure
✅ maintenance accessibility interval

Typical infrastructure payload:
✅ GNSS receivers
✅ data transmission terminals
✅ communication modules

Example engineering deployment:
Off-grid solar power architecture for GNSS slope monitoring in hydropower terrain

Solar Energy Systems for Reservoir-Bank Monitoring and Landslide Warning

Off-grid solar power architecture designed for reservoir-bank monitoring nodes, landslide warning stations, and slope safety monitoring points where stable energy continuity is required.

Primary variables:
✅ deformation monitoring load demand
✅ reservoir-side moisture exposure
✅ low-irradiance weather frequency
✅ steep-terrain inspection constraints

Typical infrastructure payload:
✅ deformation sensors
✅ GNSS monitoring devices
✅ telemetry communication modules

Example engineering deployment:
Off-grid solar power architecture for slope deformation monitoring and landslide early warning

Solar Power Systems for Hydrological and Geological Telemetry Networks

Distributed solar energy systems supporting hydrological sensors, geological telemetry terminals, and safety monitoring equipment in remote mountain or reservoir environments.

Primary variables:
✅ telemetry baseline load
✅ seasonal irradiance variability
✅ high-humidity enclosure protection
✅ long-interval field maintenance

Typical infrastructure payload:
✅ hydrological sensors
✅ geological monitoring terminals
✅ telemetry communication devices

Example engineering deployment:
Off-grid solar power architecture for geological telemetry and remote monitoring networks

Off-Grid Solar Energy Systems for Water Conservancy Infrastructure Monitoring

Autonomous solar power systems supporting distributed monitoring, telemetry, and data-upload terminals for water conservancy safety infrastructure.

Primary variables:
✅ monitoring baseline load
✅ data continuity requirements
✅ solar recovery margin under mountain weather
✅ long-term enclosure stability

Typical infrastructure payload:
✅ reservoir monitoring terminals
✅ safety monitoring sensors
✅ communication modules

Example engineering deployment:
Off-grid solar power architecture for water-conservancy monitoring and reservoir safety networks

Engineering & Procurement Contact

For engineering consultation regarding off-grid solar power systems for GNSS slope monitoring, reservoir-bank monitoring energy architecture, or storage-first autonomous power system design, professional system modeling is recommended before deployment.

Engineering consultation may include:
✅ storage autonomy modeling for GNSS monitoring loads
✅ photovoltaic recovery margin calculation
✅ high-humidity and corrosion-resistant environmental protection strategy
✅ off-grid geological monitoring infrastructure architecture design

Email
tony@kongfar.com

Website
https://www.kongfar.com

Professional engineering consultation ensures that GNSS slope monitoring infrastructure achieves long-term operational reliability under grid-absent, high-humidity, foggy, rainy, low-temperature, and reservoir-side environmental conditions.
